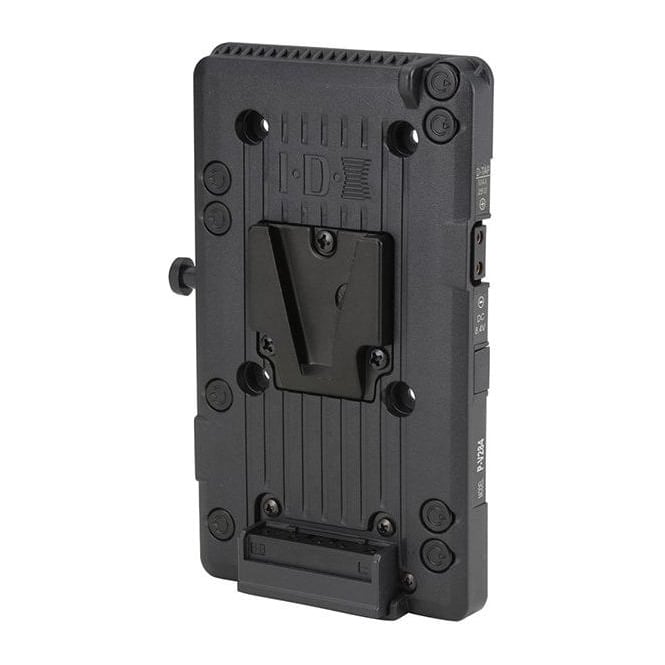

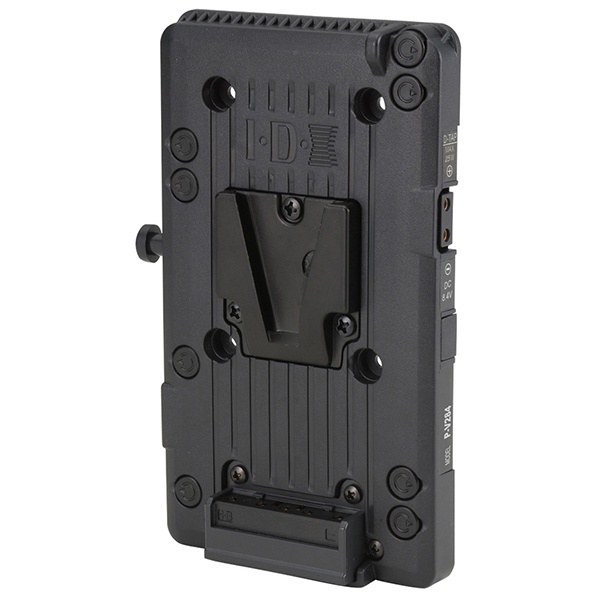

IDX P-V284 Endura V-Mount Plate

code: P-V284
  • £155.00
  • RRP: £200.00
Item Available | Usually dispatched within 24 hours
Loading...

Features

  • Offers 2-pin D-tap DC Out and DigiView
  • Enhanced P-V2 plate series variation
  • Provides an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock; the plate offers precise DC power connectivity
  • Displays remaining battery power in the viewfinder for camera systems compliant with DigiView
  • Features dual 2-pin D-taps for 8.4VDC regulated power
  • Uses 1 D-tap for regulated 8.4V
  • Second D-tap offers up to 16.8V (for IDX Lithium ion batteries) unregulated battery throughput for equipment such as lights and HDD recorders
  • Supports a variety of cameras using the optional IDX cables specific to the camera models
  • Offers a maximum power output of 50W
  • Measures 3.25 x 5.59 x .47" and weighs 0.40 lb

IDX P-V284 (PV284, P V 284, P/V284) Endura V-Mount Plate

The IDX P-V284 Endura V-Mount Plate is a 2-pin D-tap DC Out and DigiView plate that is an enhanced variation of the P-V2 Plate series. Providing an ideal solution for combining Endura V-Mount batteries to handheld cameras without the standard V-Mount style battery lock, the plate offers precise DC power connectivity.

For camera systems compliant with DigiView, the remaining battery power can be displayed in the viewfinder. Featuring dual 2-pin D-taps, the plate uses 1 tap for regulated 8.4V. The second D-tap offers up to 16.8V (for IDX Lithium ion batteries) unregulated battery throughput for equipment such as lights and HDD recorders.

You can use the Endura V-Mount Plate for a variety of cameras using the optional IDX cables specific to the camera models. The maximum power output available from the plate is 50W, and it measures 3.25 x 5.59 x .47" and weighs 0.40 lb.

  • DC output: D-Tap 1: 8.4V, D-Tap 2: Battery voltage
  • Dimensions (mm): 82.5(W) x 142(H) x 12(D)
  • Weight: 180g approx.

In the box

  • P-V284 Endura V-Mount Plate
