IDX Imicro-50P Battery with UC-PD3 USB PD Charger Kit

View All IDX

IDX Imicro-50P Battery with UC-PD3 USB PD Charger Kit

code: IM-50P-PD3

517,62 €
Secure yours with a deposit of
RRP: 517,62 €
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features:

USB PD Compatible
3x Total USB-C Ports, 1x USB-A Port
100W power output
Travel-Friendly
Ultra-compact form factor and light weight
Utilize latest Lithium-ion cell for high performance and reliability
5 LED status indicator display the remaining battery capacity and Battery Life display with 3 LED steps
Built-in USB-C PD (Power Delivery) – New protocol that provide more flexible power supplying and
charging
Built-in D-TAP - Supply 14V DC to accessories such as Monitor, Video recorder, or Light
Built-in V-Torch - Useful when attaching the battery to a camera under dark working environments
Digital communications - Display the accrued remaining time or capacity displayed in the viewfinder

Description
Specification
Included In Box
Reviews
(0)

IDX IM-50P-PD3 (IM-50P/PD3, IM/50P/PD3, IM 50P PD3, IM50PPD3) Imicro-50P Battery with UC-PD3 USB PD Charger Kit

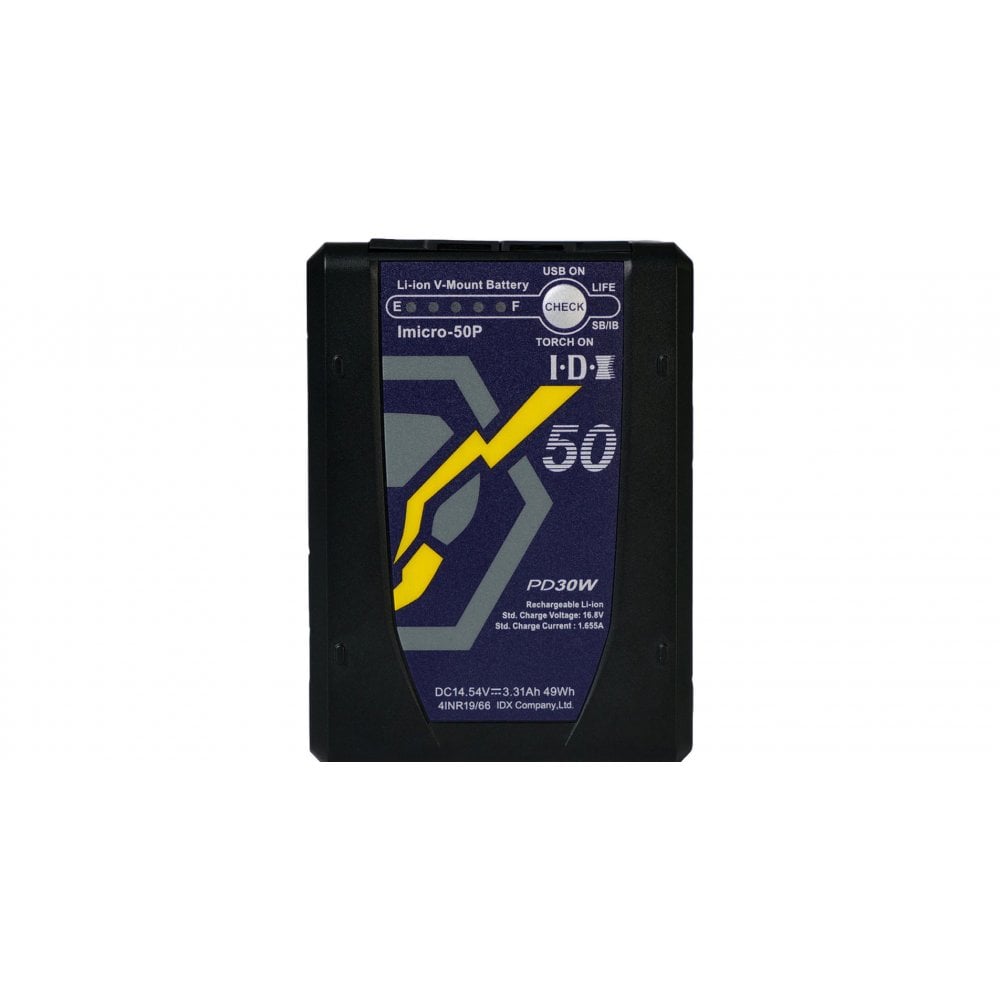

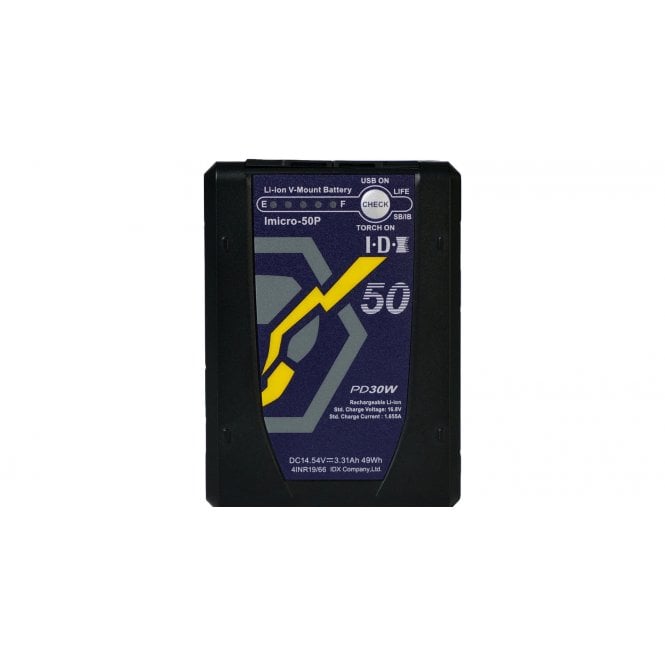

Imicro-50P

The Imicro-50P is the smallest battery pack in the world at this capacity. Rated at 49Wh, the Imicro-50P meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The Imicro’s size is beneficial for users with small equipment and gimbal setups. It also includes 1x D-Tap output, 1x USB-C PD In/Out socket, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.

The USB-C PD In/Out socket has a power output of 30W which allows users to power a myriad of accessories, including a MacBook Pro. This socket also gives you the ability to charge the battery via an IDX USB-C Charger such as a UC-PD3. Charging via USB-C is approximately 30% faster than charging with a traditional IDX V-Lock charger.

UC-PD3

The UC-PD3 is a 4-channel (1 USB-A and 3 USB-C), low-cost, portable charger designed to charge IDX batteries equipped with a USB-PD port. IDX believes that extending the number of USB-C ports will improve convenience. The addition of the UC-PD3, (along with the UC-PD1 and UC-PD2) provides IDX users a complete line of USB-PD portable battery chargers for convenient location and travel camera charging and a power supply for other devices, such as tablets, smartphones, cameras and other AV/IT gear equipped with a USB-C terminal.

IMICRO-50P

Capacity: 49Wh (14.5V/ 3.3Ah)
Max Output Voltage: 16.8V DC
Nominal Voltage: 14.5V DC
Max Discharge Current: 7.2A
D-Tap: 35W each
End Voltage: 11V
Battery Protection: Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)To store: -4°F ~ 122°F (less than 1 month)
USB-C In/Out: PD30W
Weight: 0.84 lbs

UC-PD3

Input Voltage: AC 100-240V 50/60Hz
Quick Charge Current: USB-C port 1/2 : DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 100W
USB-C port3: DC5V/3A, DC9V/2.22A, DC12V/1.67A (Max. 20W)
Quick Charge Current: USB-A Single port : DC4.5V/5A, DC5V/4.5A, DC9V/2A, DC12V/1.5A (Max. 22.5W)
DC Connector: USB Type-C and USB Type-A
Operating Temperature: 32°F ~ 104°F
Cable Length: 60 inches (1.5m)
Description: 3ch: USB Power Delivery
Weight: 0.46 lbs

In The Box

2x Imicro-50P Batteries
1x UC-PD3 USB PD Charger
