IDX Imicro-98P Li-Ion V-Mount Battery with UC-PD3 USB PD Charger

View All IDX

IDX Imicro-98P Li-Ion V-Mount Battery with UC-PD3 USB PD Charger

code: IM-98P-PD3

£540.00
Secure yours with a deposit of
RRP: £540.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features:

97Wh capacity
Meets passenger aircraft travel regulations
Capable of handling up to 13.1A loads*
100W D-Tap Output (unregulated)
60W USB-C PD Output – 5V, 9V, 12V, 15V & 20V
5 Power Indicator LEDs (displaying 10% increments)
11V auto cut-off prevents over-discharging (while load is applied)
Fully compatible with all ENDURA V-Mount Battery chargers and accessories.
Environmentally friendly and recyclable

Description
Specification
Included In Box
Reviews
(0)

IDX IM-98P-PD3 (IM-98P/PD3, IM/98P/PD3, IM98PPD3, IM 98P PD3) Imicro-98P Li-Ion V-Mount Battery with UC-PD3 USB PD Charger

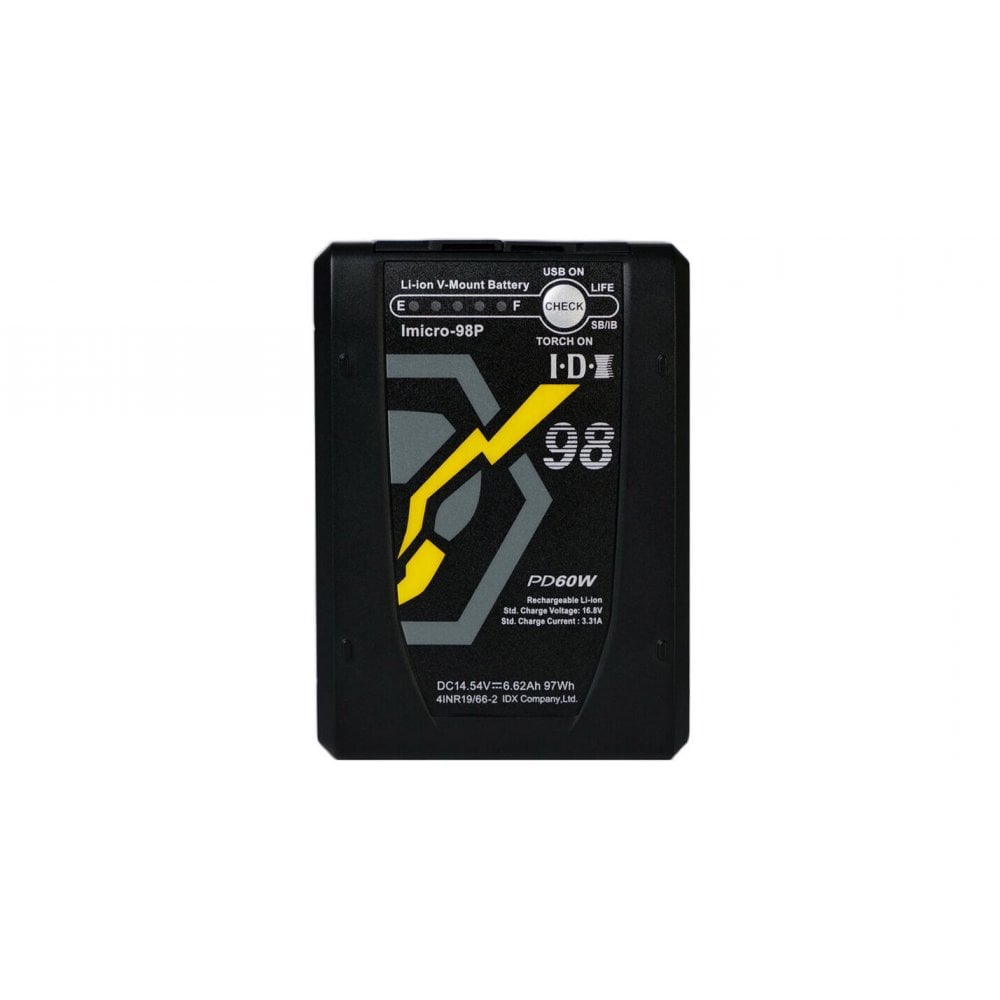

Imicro-98P

The IMICRO-98P is the smallest battery pack in the world at this capacity. Rated at 97Wh, the IMICRO-98P meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The IMICRO™s size is beneficial for users with small equipment and gimbal set ups, and fits the new RED V-RAPTOR. The IMICRO-98P also includes one USB-C PD and one D-Tap outputs, V-Torch LED for use in dark environments and digital communications to display battery info via viewfinder on cameras such as ARRI and RED. Future accessories will make the Imicro Series your new go-to setup.

*Compatible with UC-PD1 and UC-PD2 for USB-C PD charging

UC-PD3

The UC-PD3 is a 4-channel (1 USB-A and 3 USB-C), low-cost, portable charger designed to charge IDX batteries equipped with a USB-PD port. IDX believes that extending the number of USB-C ports will improve convenience. The addition of the UC-PD3, (along with the UC-PD1 and UC-PD2) provides IDX users a complete line of USB-PD portable battery chargers for convenient location and travel camera charging and a power supply for other devices, such as tablets, smartphones, cameras and other AV/IT gear equipped with a USB-C terminal.

Compatible batteries: DUO-CP series (DUO-C98P, DUO-C150P, DUO-C198P) IMicro series (Imicro-150P, Imicro-98P, Imicro-50P) ZEN-C series (ZEN-C98G, ZEN-C150G)

Imicro-98P

Capacity: 97Wh (14.5V/ 6.6Ah)
Max Output Voltage: 16.8V DC
Nominal Voltage: 14.5V DC
Max Discharge Current: 13.1A
D-Tap: 100W each
End Voltage: 11V
Battery Protection: Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)To store: -4°F ~ 122°F (less than 1 month)
USB-C In/Out: PD60W
Weight: 1.28 lbs

UC-PD3

Input Voltage: AC 100-240V 50/60Hz
Quick Charge Current: USB-C port 1/2 : DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 100W
USB-C port3: DC5V/3A, DC9V/2.22A, DC12V/1.67A (Max. 20W)
Quick Charge Current: USB-A Single port : DC4.5V/5A, DC5V/4.5A, DC9V/2A, DC12V/1.5A (Max. 22.5W)
DC Connector: USB Type-C and USB Type-A
Operating Temperature: 32°F ~ 104°F
Cable Length: 60 inches (1.5m)
Description: 3ch: USB Power Delivery
Weight: 0.46 lbs

In The Box

2x Imicro-98P Batteries
1x UC-PD3 USB PD Charger

Be the first to review Imicro-98P Li-Ion V-Mount Battery with UC-PD3 USB PD Charger. Write a review ›
