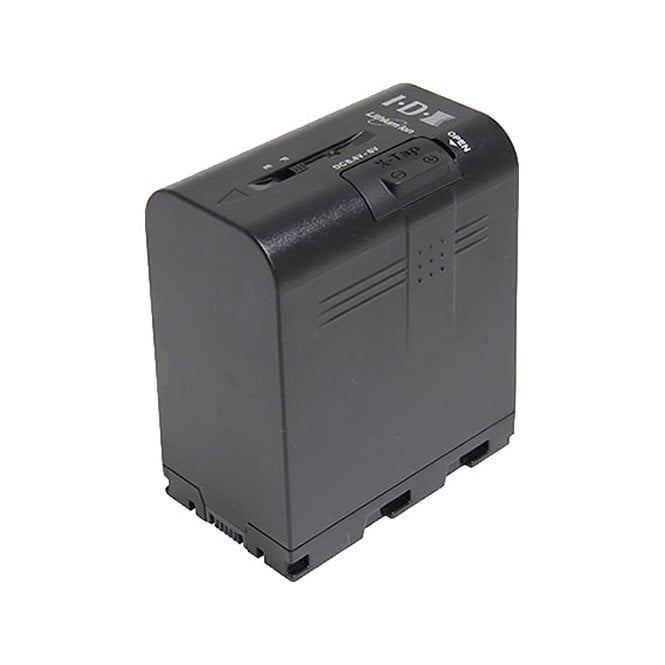

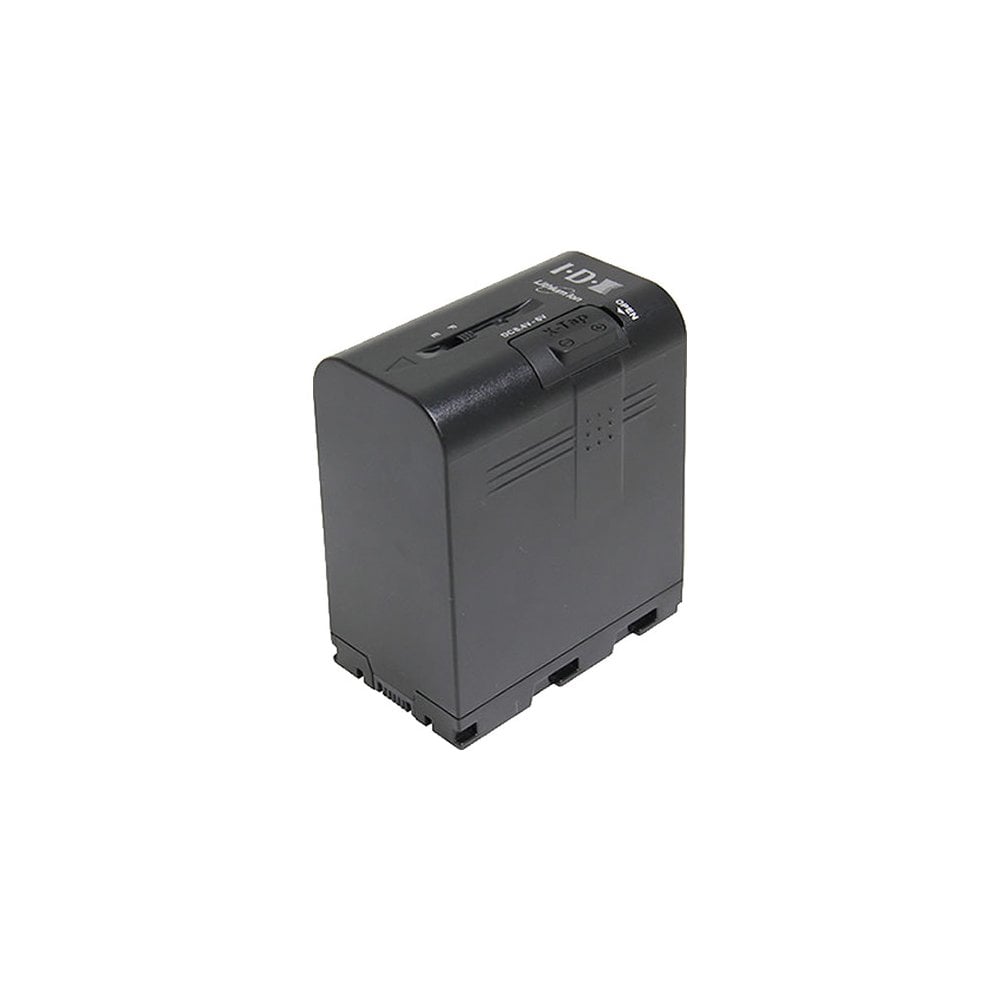

IDX SSL-JVC75 7.4V Battery System

IDX SSL-JVC75 (SSL_JVC75, SSL/JVC75, SSL JVC75) 7.4V Battery System

This high-capacity IDX Battery from JVC is designed for the JVC GY-HM600U, GY-HM650U, and GY-HMQ10U cameras and JVC DT-X series monitors. It features a 7.4V output and 55Wh capacity and offers a proprietary IDX 7.2V X-Tap output for powering various accessories simultaneously with the camera/monitor. The optional C-XTAP2 X-Tap open leads cable is required for using the X-Tap connector.

• Battery Capacity: 7350mAh, 55Wh
• Max.Output Voltage: 8.4V DC
• Nominal Output Voltage: 7.4V DC
• X-Tap Connector: 6.0V-8.4V (3.3A/20W max. load)
• Maximum Discharge Current: 4.9A/59W
• Battery Protection: Over charge, Over discharge, Over current
• Dimensions: 70(W) x 43(H) x 80(D) mm
• Weight: 349 grams approx.

In the box

• SSL-JVC75 7.4V Battery System
