IDX V-Mount Li-ion Battery Kit

IDX EC-J150-4X2 (EC-J150/4X2, EC/J150/4X2, EC J150 4X2, ECJ1504X2) V-Mount Li-ion Battery Kit

The CUE-J150 has a 143Wh capacity and is capable of handling high current loads up to 12A/156W. Each CUE-J series battery has a single built-in D-Tap output capable of taking an 80W load and a 4-LED power indicator. The CUE-J Series battery products are designed to be an affordable, reliable option for a variety of power needs such as powering cameras, portable production monitors, portable lighting and audio products that require power from a V-Mount plate or D-Tap to XLR cable input.

The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.

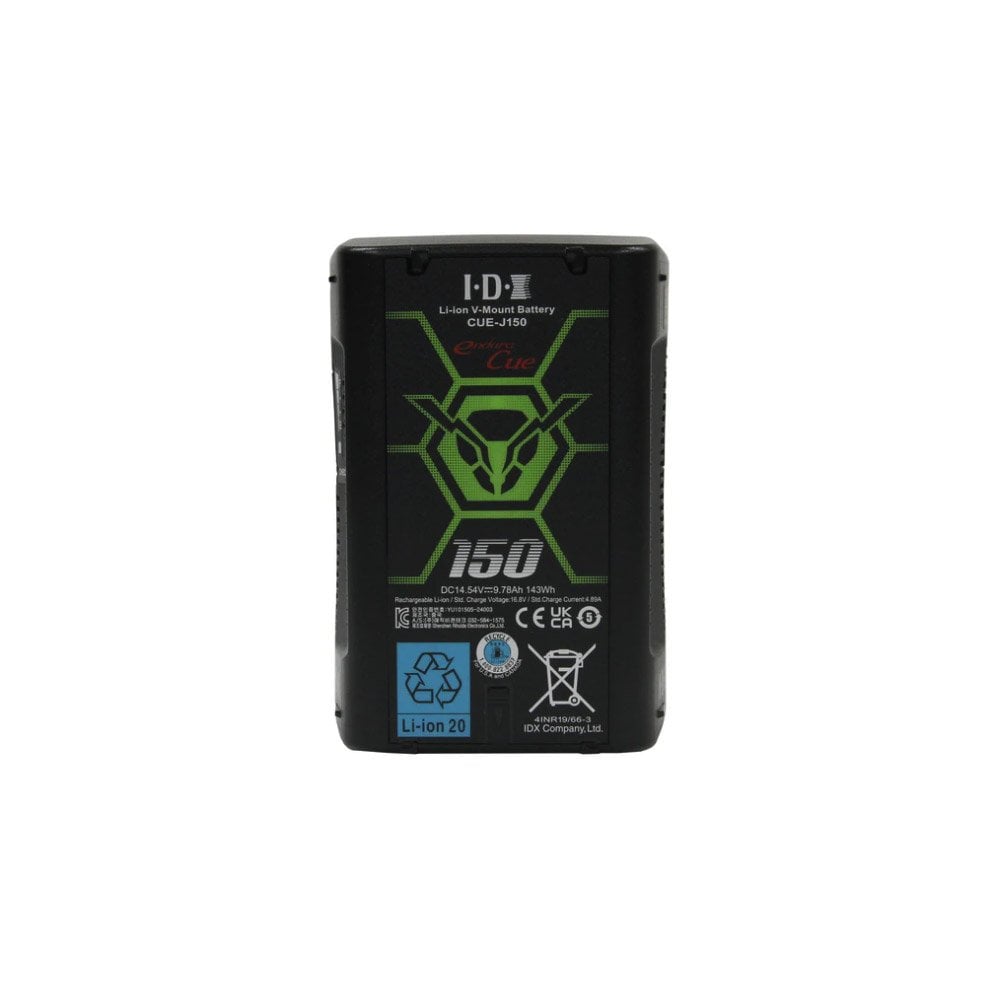

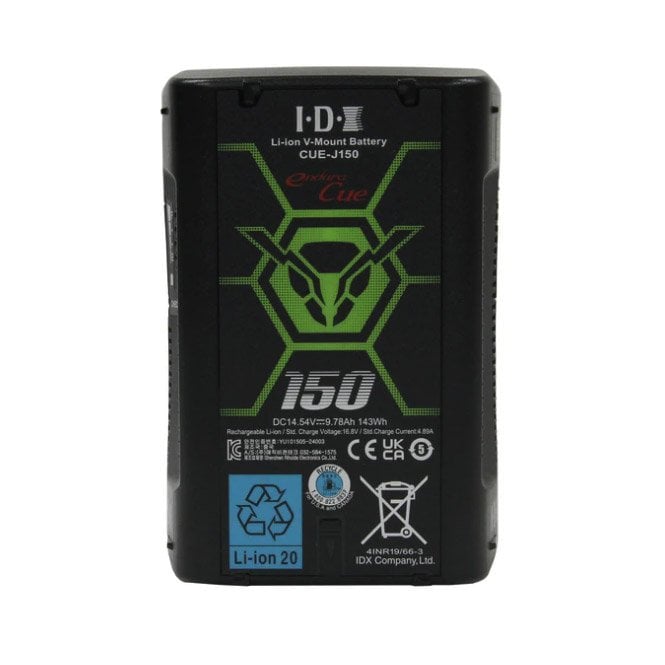

CUE-J150

• Battery Type: Rechargeable Li-ion Battery
• Mount Type: V-Mount
• Capacity: 143 Wh (14.54 V / 9.85 Ah)
• Nominal Voltage: 14.54 V
• Maximum Voltage: 16.8 V
• Maximum Discharge Current: 13.9 A
• D-Tap Output: 1 × Unregulated (up to 80 W / 14.54 V)
• Protection Circuit: Over-charge, Over-discharge, Over-current
• End Voltage: 11.2 V
• Operating Temperature: –20 °C to 45 °C (Discharge)
• Charging Temperature: 0 °C to 40 °C
• Storage Temperature: –20 °C to 45 °C (short term)
• Dimensions: 97 mm (W) × 146 mm (H) × 58.9 mm (D)
• Weight: Approx. 890 g
• Compliance: UN 38.3 / IATA Compliant for Air Transport

VL-4X

• Charging Channels: 4 (Simultaneous/Sequential depending on load)
• Compatible Batteries: IDX V-Mount Li-ion batteries
• Charge Current: 2.3 A per channel
• AC Input: 100 – 240 V AC, 50/60 Hz
• DC Output (XLR): 15 V DC, 6 A (90 W max)
• Cooling: Fanless, silent operation
• Safety Features: Auto cut-off for over-voltage or abnormal conditions
• Dimensions: Approx. 170 mm (W) × 140 mm (H) × 265 mm (D)
• Weight: Approx. 1.8 kg

In The Box

• 2x CUE-J150 Batteries
• 1x VL-4X Charger
• 4 pin XLR DC output (90W)
