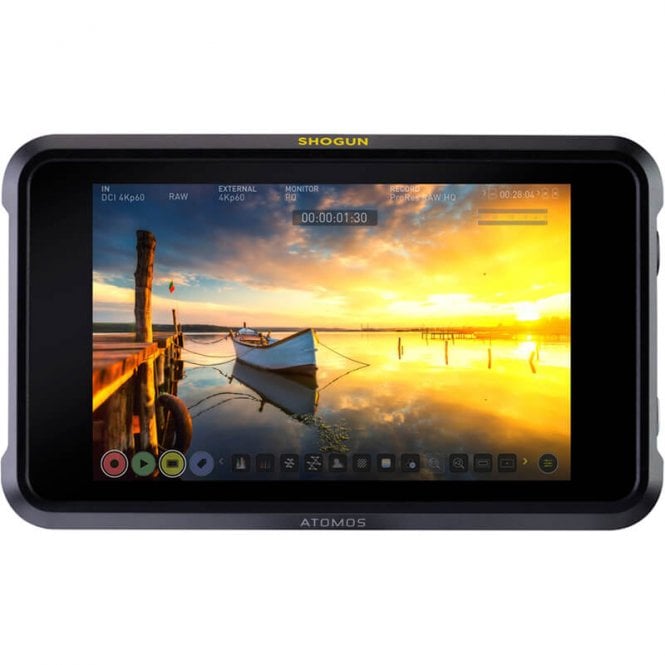

Atomos AOATOMSHG701C Shogun Classic 7-inch 4K HDR HDMI/SDI Pro/Cinema Monitor-Recorder-Switcher

Atomos AOATOMSHG701C (AO-ATOMSHG701C, AO/ATOMSHG701C, AO ATOMSHG701C, AO_ATOMSHG701C) Shogun Classic

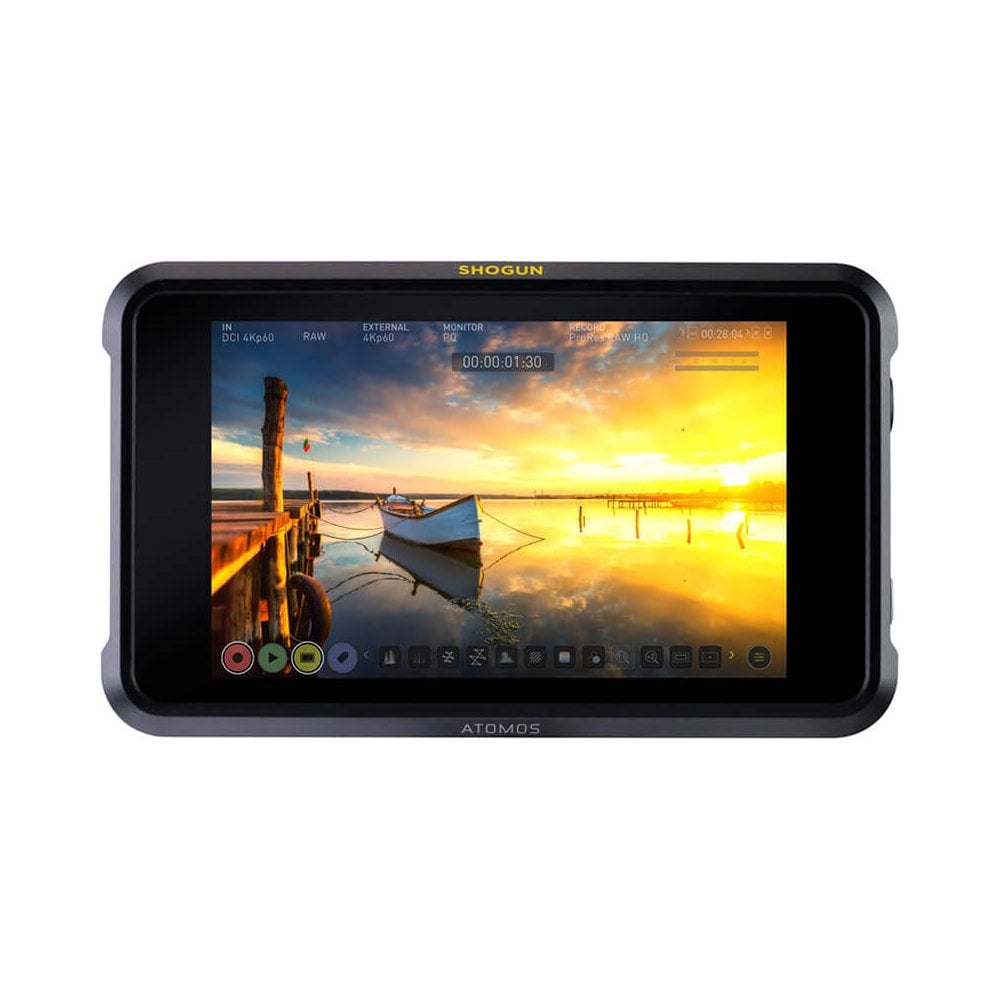

Shogun Classic 7-inch 4K HDR HDMI/SDI Pro/Cinema Monitor-Recorder-Switcher

Apple ProRes and ProRes RAW recording and playback

Crafted for professionals who push the boundaries of video quality, this 7-inch screen enhances the visuals from any HDMI or SDI camera. With an impressive contrast ratio of 1,000,000:1 and peak brightness of 3000 nits, the Shogun Classic is the ultimate all-in-one tool for video production and creative storytelling.

The Shogun Classic supports high production standards with RAW and 4K HDR, giving you full control during production and post-production. Monitor every detail of SDR or HDR footage in real-time, and record up to 5.7K Apple ProRes RAW* or 4K Apple ProRes directly to affordable SSD drives, bypassing the high costs and limitations of SD memory cards. You can even shoot RAW at high frame rates up to HDp240**.

Additionally, with asynchronous multicamera switching and support for a variety of codecs, you’ll have unprecedented power to bring your creative vision to life.

*Panasonic EVA1

**Sony FS Series and EVA1

Multicamera touchscreen switching

Live mix & record up to 5 streams

Leverage the power of 4 x SDI inputs with the Shogun Classic, transforming it into a portable, quad-view live switcher and recorder for your multicamera shoots. Capture up to four 1080p60 streams simultaneously as separate ISOs, and seamlessly cue and switch between them in real-time with a simple tap on the screen. The mixed output can be displayed live on set via HDMI or SDI, or even streamed live for online audiences. The asynchronous switching feature eliminates the need for expensive, locked camera sources, making it possible to use more budget-friendly cameras.

You can either view all streams at once in a quad-view layout or switch to a full-screen display of any of the four input streams. A simple tap on a stream in quad-view instantly switches to that feed, which becomes the program output. Each stream is recorded as a separate ISO with embedded audio in either Apple ProRes or Avid DNx, allowing for easy re-editing after the shoot.

All switching decisions are saved as metadata, with transition types embedded in an FCPX .xml file. Once filming wraps, importing your ISOs into your editing software will ensure all streams and transitions are perfectly aligned with synced audio and video.

Perfect exposure and colour

Fine tune every detail, while you shoot

A premium viewing experience allows you to make confident, informed decisions on set.

With the Shogun Classic’s dynamic zoned backlight, you'll enjoy deeper blacks, brighter whites, and crystal-clear highlight details. See every nuance of what your camera sensor captures with unmatched precision. Leverage advanced HDR waveform tools, whether you're working with log or RAW footage, to achieve perfect exposure, color accuracy, and white balance. Shogun Classic provides full control to optimize HDR exposure while ensuring you're ready for SDR finishing in post-production.

Intuitive monitoring tools put every aspect of the image at your fingertips. Customize 3D LUTs, apply false color profiles, adjust focus peaking, and zoom with movable 1:1 or 2:1 pixel magnification. For color accuracy, RGB parade and vectorscopes guarantee precise color reproduction on your calibrated monitor.

The Shogun Classic is at home on practically any camera

With its ProRes RAW recording capabilities, the Shogun Classic pairs seamlessly with industry powerhouses like the Canon C300 mkII, Panasonic EVA 1, and Sony FS5 II, delivering stunning images with maximum detail and post-production flexibility. It also revitalizes older models like the Sony FS700R, turning them into cinematic RAW shooting machines with advanced features like 4Kp60 and 2Kp240 RAW capture.

For DSLR or mirrorless cameras, connect via HDMI to unlock up to 4Kp60 recording in Apple ProRes or AVID DNx formats, ensuring easy editing and archival-quality footage. When paired with high-end cameras such as ARRI, RED, or Sony Venice, the Shogun Classic offers precise HDR monitoring and all the professional tools needed to get the job done efficiently.

Unlock the true potential of your camera

Preserve your sensor's pristine pixels in ProRes RAW at up to 5.7kp30, 4kp60 DCI/HD and 2kp240 DCI/HD

Amplify the creative advantages of shooting RAW

The Shogun Classic captures RAW data directly from the camera’s sensor, preserving the unprocessed image and giving you the flexibility to fine-tune every aspect of your video during post-production.

By applying ProRes compression to RAW image data, the Shogun Classic enhances your creative workflow. ProRes RAW files are more compact than most proprietary RAW formats, enabling faster and more efficient importing, editing, and grading. ProRes RAW is supported by major editing platforms such as Final Cut Pro X, Adobe Premiere, and Avid Media Composer*.

In addition to ProRes RAW, the Shogun Classic offers a wide range of codec options, making it compatible with all major editing software. It records in Apple ProRes, Avid DNxHD and HR, and Adobe CinemaDNG, providing maximum versatility.

With support for virtually any HDMI, SDI, Dual, or Quad Link SDI source, the Shogun Classic opens up possibilities for both new and existing cameras. Atomos proudly supports industry-standard cameras from brands like Nikon, Canon, Panasonic, Sony, RED, Arri, and Z-CAM.

Dolby Vision

Give on-set HDR monitoring to your client and creatives

Experience your footage through your audience's eyes even before filming is complete with the Shogun Classic. It enables real-time content delivery via Dolby Vision live HDMI output from any HDR camera to a compatible Dolby Vision HDR TV or monitor. This ensures you see an accurate, high-brightness, full-color representation of your video while still on set.

By providing a precise reference, the Shogun Classic allows you to adjust exposure and lighting with confidence, optimizing your footage for modern HDR displays. This gives the crew greater assurance in what they’re capturing and accelerates the finishing process, streamlining your entire production workflow.

User-friendly AtomOS

Intuitive touch screen operation

With one-touch operation, the Shogun Classic offers instant access to a comprehensive suite of tools, including scopes, exposure controls, zoom, calibration, and focus aids. This intuitive interface ensures that you capture high-quality recordings every time, with precise control over every aspect of your footage.

Shot tagging

Easily tag your footage with metadata as you shoot, marking favorites, rejects, and more with just a few taps. Once you import your footage into your editing timeline, you can quickly filter and organize clips based on these tags, streamlining the post-production process and helping you find the best takes faster.

Balanced audio

Add 48V stereo microphones using an XLR breakout cable and choose between mic or line input levels for flexible audio recording. Capture up to 12 channels of digital audio from HDMI or SDI sources, and conveniently monitor your audio through the 3.5mm headphone jack to ensure top-quality sound throughout your production.

High speed connections

Easily cross-convert between HDMI 2.0 and 1.5G/3G/6G/12G single-link SDI or Dual/Quad Link in nearly any combination, eliminating the need for additional specialist converters. This flexibility allows seamless integration of various cameras and devices, streamlining your workflow and reducing complexity on set.

Quad SDI & HDMI 2.0 In/Out

Connect any SDI or HDMI device for both monitoring and recording with ease. The Shogun Classic allows you to cross-convert between HDMI 2.0 and 1.5G/3G/6G/12G Quadlink SDI, eliminating the need for specialized converters and ensuring smooth integration across different devices, making your workflow more efficient and adaptable.

Power

• Operating power: 10 - 33W
• Compatible batteries: NP-F series and supporting accessories
• Input voltage (battery): 6.2V to 16.8V
• Battery time (based on 7.4V): 5200mAh - up to 1.5hrs (monitor & record 4K 30p), 7800mAh - up to 2.2hrs (monitor & record 4K 30p)
• DC In: 1 x DC in (6.2 - 16.8V)

Touchscreen

• Size: 7.1"
• Resolution: 1920 x 1200
• PPI: 325
• Aspect ratio: 16:9 native
• Color Gamut: REC709 HDTV
• Look up table (LUT) support: 3D LUT (.cube format)
• Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
• Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR

• AtomHDR: Yes
• Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C,, Panasonic Vlog, JVC JLog, Red LogFilm
• Supported Gamuts: Canon Cinema / BT2020 / DCI P3 / DCI P3+, Panasonic V Gamut, Arri Alexa Wide Gamut
• Bit depth: 10-bit (8+2 FRC)
• Brightness: 1500nit (+/- 10%)
• HDR input (PQ/HLG): Yes / Yes
• HDR output (PQ/HLG): Yes / Yes

Video input/loop out

• HDMI: 1 x HDMI (2.0)
• SDI: Quad link 4 x 3G SDI* or up to 12G single link SDI
• Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video output (play out)

• HDMI: 1 x HDMI (2.0)
• SDI: 1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
• Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported loop out formats

• HDMI to HDMI: 720p 50/60, 1080i 50/60,, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60
• SDI to SDI: 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60

Video signal conversion

• HDMI to HDMI: 720p 50/60, 1080i 50/60,, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60
• SDI to SDI: 720p 50/60, 1080i 50/60,, 1080p 24/25/30/50/60/100/120/200*/240*, 2160p 24/25/30/50/60
• Onboard processing
• Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)
• 4K UHD downscale for HD monitoring: Yes - Loop-out and playback (Not available in RAW)

Audio in/out (48kHz PCM audio)

• HDMI: 2 or 8ch 24-bit, camera dependent
• SDI: 12ch 48kHz 24-bit
• Audio: 2ch balanced XLR analog in/out, Dynamic range >90dB, Max signal level +24dBu, Max analog gain +52dB, 48V Phantom Power for Mic

Remote start/stop

• HDMI: Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard
• SDI: SDI trigger camera selectable
• Other: LANC control - Slave

Playback

• Playlist / Genlock / LTC: Yes / Yes / Yes
• CDNG (Recorded content): No support
• ProRes (Recorded content): All recorded files can playback. Playback in slow motion >= 100fps
• DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion >= 100fps

Recording

• Pre-roll record: Yes (HD 8s, 4K 2s)
• Custom timelapse: Yes
• Meta data tagging: Yes (10 tags available)
• Supported media: 2.5" SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
• Master caddy case: Master Caddy II (included) 75mm x 105mm x 12mm
• Master caddy dock: 2.5" SATA to USB 2.0/3.0
• Supported applications: Supported Applications FCPX/FCP7+ / Media Composer, 5.0+ / Premiere 5.5+
• EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /, Autodesk Smoke 2015
• XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools

In The Box

• Shogun Classic unit, Master Caddy II x 1
• 12V-3A AC power supply, Carry Case
• Quick Start guide
