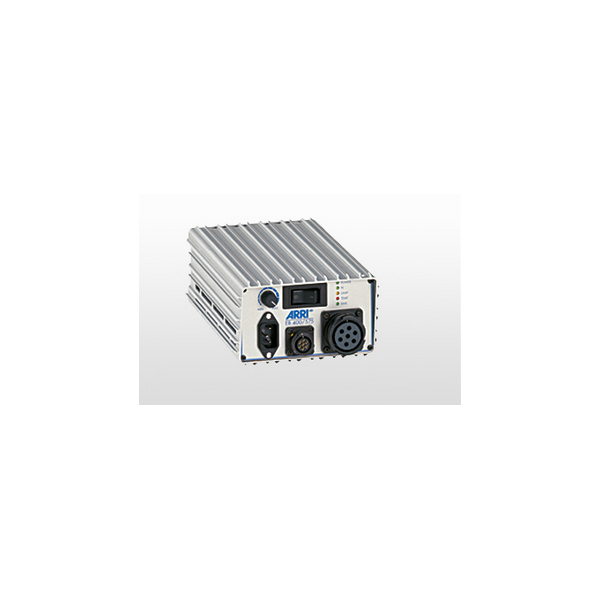

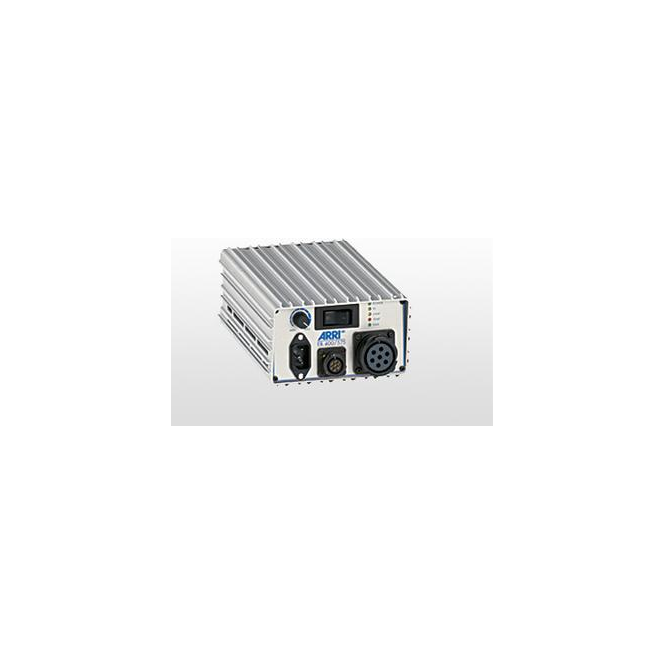

Arri L2.76013.B EB 125/200, 90-125 V/180-250 V

code: L2.76013.B
Please login to view our prices
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

L2.76013.B EB 125/200, 90-125 V/180-250 V, 200 Hz, Schuko-Plug, ALF, 125 W-connector: Binder, 200 W-connector: Amphenol, aluminium profile housing

ARRI equipment is known for the high robustness demanded for film location work, but for run-and-gun applications lightweight ballasts up to 575 W are available with lightweight extruded aluminium housings, an ideal match for the ARRI Pocket PAR lampheads.

Features:

  •     ALF (Active Line Filter)
  •     Line over-voltage protection
  •     Protection from overheating
  •     Constant lamp power and colour temperature over the lifetime of the lamp
  •     Possibility to dim the light between 50 and 100%
  •     Automatic switch-over for 115V~ and 230V~ power supplies
  •     Active Line Filter - power factor correction
  •     Compact and very lightweight aluminium profile housing
  •     At least 5% greater light intensity compared to magnetic ballasts
  •     At least 20% longer bulb life compared to magnetic ballasts
  •     Automatic detection of connected luminaire
  •     Good service assistance
  •     Detailed technical documentation

Specification:

  Versions ARRI Lightweight
EB 125/200		 ARRI Lightweight
EB 400/575		 ARRI Lightweight
EB 400/575
  Ident-No. L2.76013.B L2.76260.0 L2.76262.0
Mains Supply:
  Line Power 240 VA (max.) 667 VA (max.) 667 VA (max.)
  Supply Voltage 90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE		 90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE		 90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE
  Nominal Current 2.7-1.8 A / 1.3-1.0 A 7.4-5.1 A / 3.7-2.7 A 7.4-5.1 A / 3.7-2.7 A
  Power Factor cos Φ≈ 0.98 cos Φ≈ 0.98 cos Φ≈ 0.98
Lamp Connection:
  Lamphead connector Binder / Amphenol International (VEAM) Schaltbau
  Lamp Power 125 W / 200 W 400 W / 575 W 400 W / 575 W
  Power Adaption constant control,
automatic detection of lamphead		 constant control,
automatic detection of lamphead		 constant control,
automatic detection of lamphead
  Current Characteristic square wave,
ca. 200 Hz,
flicker free		 square wave,
ca. 200 Hz,
flicker free		 square wave,
ca. 200 Hz,
flicker free
  Dimming 70-100% of nominal lamp power 50-100% of nominal lamp power 50-100% of nominal lamp power
  Starting cold start and hot restrike cold start and hot restrike cold start and hot restrike
  Typical Light Ripple typ. < 3% typ. < 3% typ. < 3%
General:
  Dimensions 130 x• 70 x• 240 mm 155 x• 91 x• 270 mm 155 x• 91 x• 270 mm
  Weight ca. 1.7 kg ca. 3 kg ca. 3 kg
  Protective Rate IP 21 IP 22 IP 22
  Ambient Conditions -20 to +50 °C
10% to 80%
(not condensing)		 -20 to +50 °C
10% to 80%
(not condensing)		 -20 to +50 °C
10% to 80%
(not condensing)
  Housing aluminium profile housing aluminium profile housing aluminium profile housing
Indicators:
  ON / OFF X X X
  Protective Earth   X X
  Lamp On X X X
  Over Temperature X X X
  Output Mode (Frequency)
  Remote / DMX   X X
  Detected Lamp Power
Features:
  Automatic Lamp Recognition
  Automatic Lamphead Recognition X X X
  Active Line Filter (ALF) X X X
  Compensation for Cable Loss (CCL)
  Dimming X X X
Output Type:
  50 Hz (low noise)
  60 Hz (low noise)
  75 Hz (flicker free)
  300 Hz (flicker free High Speed)
  1000 Hz (flicker free High Speed
Options:
  DMX   X X
