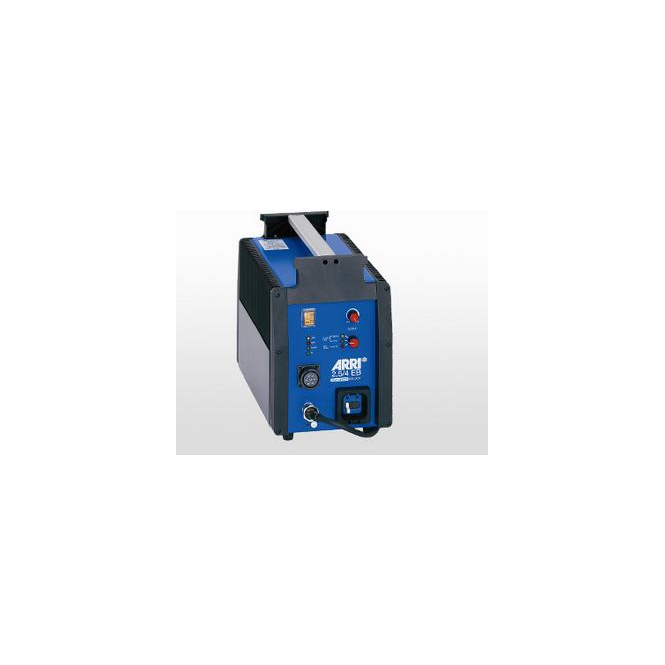

Arri L2.76181KH EB 6/9 Highspeed Ballast, 190 - 250 V

code: L2.76181KH
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £250

L2.76181KH EB 6/9 Highspeed Ballast, 190 - 250 V, 50/75/1000Hz, ALF, CCL, DMX, VEAM, 2 m bare ends, portable, blue standard housing

ARRI is pleased to introduce a new generation of 1000 Hz High Speed Ballasts that accept the challenge of modern digital high-speed photography with ease.

With the new 1000 Hz High Speed Ballasts it is easy to achieve high quality flicker free images even at frame rates of 1000 fps and in many cases beyond even with a single HMI daylight source. This new technology supplies the lamp with a greatly raised 1000 Hz square wave current, allowing worriless shootings for commercials, sports, industrial applications, automotive component testing, ballistics or material testing.

1000 Hz High Speed Ballasts are available for all wattages from 125 W to– 9000 W.

Features:

ARRI 1000 Hz High Speed Ballasts offer the full range of features of the standard electronic ballasts plus the following:

  •     1000 Hz Flickerfree light for frame rates up to 5000 fps with multiple sources
  •     Additional standard Flickerfree Mode for low noise operation
  •     can also be used in environments with low noise requirements (microphones)

Specification:

Ballast NameEB 6/9 kW
(DMX)
EB 6/9 kW
(DMX, High Speed)
Ident. Nr.:L2.76181.0L2.76181KH
Ballast Type:electronic ballastelectronic ballast
Lamp Power:6,000W / 9,000W6,000W / 9,000W
Input Voltage:"180 - 250 V 50/60 Hz
Input Current (A) nominal:56 - 44 A 56 - 44 A
Max. Apparent Power (VA):11200VA11200VA
Power Factor (cos phi):approx. 0.98approx. 0.98
Efficiency %:approx. 0.91approx. 0.91
Active Line Filter:xx
Ignition:cold strike and hot restrike (automatically limeted < 1 sec)cold strike and hot restrike (automatically limeted < 1 sec)
Typical Light Ripple:< 3%< 3%
Dimming:50 - 100% of the nominal value50 - 100% of the nominal value
DMX Remote Control:DMX 512 StandardDMX 512 Standard
DMX Functions:ballast on/off; dimming of lamp power ballast on/off; dimming of lamp power
DMX Connector:XLR 5-pin male and female (in / out) XLR 5-pin male and female (in / out)
Automatic Lamp Detection:xx
Automatic Lamphead Detection:xx
Compensation of Cable Losses (CCL):xx
LED Indication of Input Voltage:xx
LED Indication of Protective Earth:xx
LED Inciation of Over Temperature:xx
LED Indication Lamp On:xx
LED Indication of detected lamp:xx
LED Indication of Low Noise Mode:xx
High Speed 1000Hz:x
Flicker Free:x
Low Noise 75 Hz:xx
Low Noise 50 Hz:xx
ON/OFF:x (illuminated)x (illuminated)
Dimension:358 x 263 x 450 mm (H x W x L)358 x 263 x 450 mm (H x W x L)
Weight:28 kg28 kg
Max. Ambient Temp. °C:50°C50°C
IP Rating:IP 22IP 22
