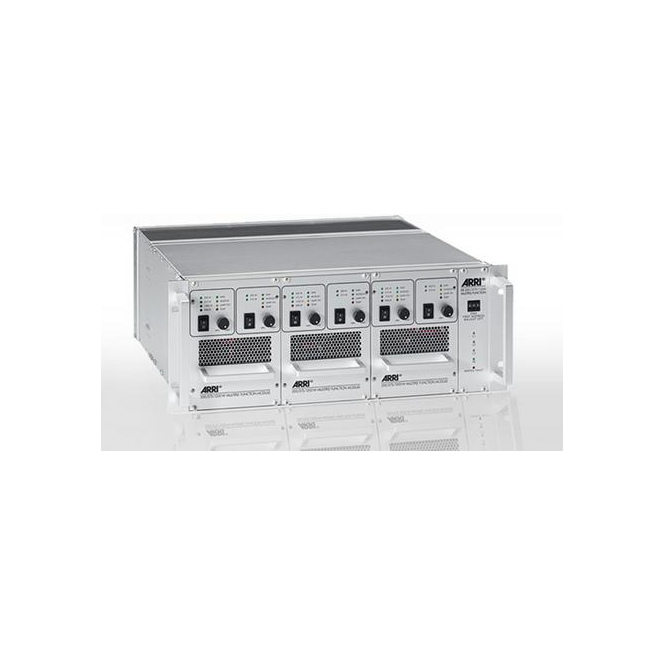

Arri L2.76259EV EB 575 EVENT SINGLE

code: L2.76259EV
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £250

L2.76259EV EB 575 EVENT SINGLE

Components:

  • Extension Cable Event 575, 5 m
  • Extension Cable Event 575, 10 m

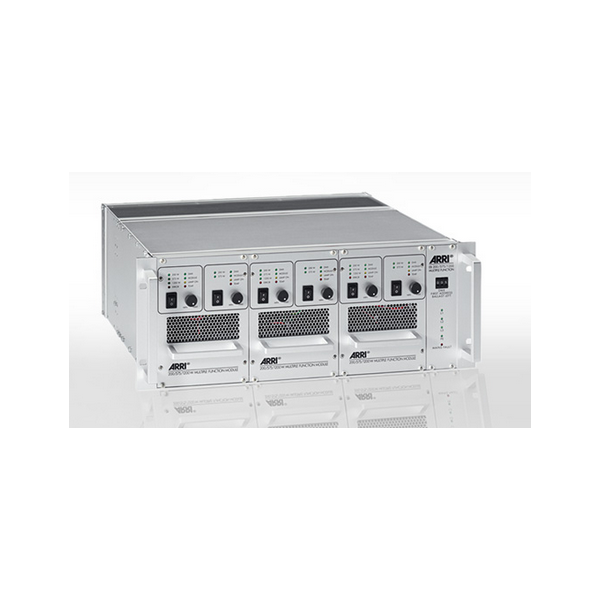

The ARRI Event System includes the ARRISUN 5 Event and ARRISUN 18 Event and several intelligent remote 19“ electronic ballast units (EB 1200/1800 EVENT THREE, EB 200/575/1200 MULTIPLE FUNCTION, EB 575 EVENT SIX AND EB 575 EVENT SINGLE) and multicore cable power distribution.

The ballast units (except of EB 575 EVENT SINGLE) consist of three easily exchangeable modules and can be operated manually or via DMX remote control. Each channel can be switched or dimmed to 50% individually and the front panel indicators show the status of both lamphead and ballast.

Features:

  • Constant lamp power and colour temperature over the lifetime of the lamp

  • 19" rack-mount ballast (4U)

  • Userfriendly control panel with dimming knobs for each channel

  • Exchangeable power modules

  • Operation of up to six channels with one unit (EB 575 EVENT SIX)

  • Flicker-free operation

  • Integrated lamp detection in EB 1200/1800 EVENT THREE

  • Multicore cable management

  • Intelligent split boxes

  • ALF (Active Line Filter)

  • Dimming on all models

  • Protection from overheating

  • Operate in temperature up to 50°C

  • Good service assistance

  • Detailed technical documentation



Specification:

Electronic Event Ballasts:


 Versions
 Ident-No.
Mains Supply:
 Line Power
 Supply Voltage
 Nominal Current
 Power Factor
Lamp Connection:
 Lamphead connector
 Lamp Power
 Power Adaption
 Current Characteristic
 Dimming
 Starting
 Typical Light Ripple
General:
 Dimensions
 Weight
 Protective Rate
 Ambient Conditions
 Housing
Indicators:
 ON / OFF
 Protective Earth
 Lamp On
 Over Temperature
 Error
 Remote / DMX
 Detected Lamp Power
Features:
 Automatic Lamp Recognition
 Automatic Lamphead Recognition
 Active Line Filter (ALF)
 Compensation for Cable Loss (CCL)
 Dimming
Output Type:
 50 Hz (low noise)
 60 Hz (low noise)
 75 Hz (flicker free)
 300 Hz (flicker free High Speed)
 1000 Hz (flicker free High Speed
Options:
 DMX




ARRI EVENT
EB 575 EVENT SINGLE
ARRI EVENT
EB 575 EVENT SIX
ARRI EVENT
EB 1200/1800 EVENT THREE
ARRI EVENT
EB 200/575/1200 MULTIFUNCTION
L2.76259EVL2.76340.0L2.76610.0L2.76777.0

667 VA (max.)4200 VA (max., 90 V)7800 VA (max.) 4200 VA (max.)
90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE
U(LL) = 160 - 460 V~
U(LN) = 90 - 265 V~
50/60 Hz 3, N, PE (three phase)
U(LN) = 180 - 265 V~
50/60 Hz 3, N, PE (three phase)
U(LN) = 90 - 130 V~ / 180 - 250 V~
50/60 Hz 3, N, PE (three phase)
7.4 - 5.1 A / 3.6 - 2.6 A15.6 - 5.3 A14.5 - 10.5 A (eff., each phase)15.6 - 10.8 A / 7.8 - 5.6 A (eff., each phase)
cos Φ≈ 0.98cos Φ≈ 0.98cos Φ≈ 0.98cos Φ≈ 0.98

Schaltbau M1Schaltbau M3Harting HAN 16BSchaltbau M3
575 W6 x 575 W / 600 W3 x 1200 W or 3 x 1800 W6 x 200 W / 575 W or 3 x 1200 W
constant controlconstant controlconstant control,
automatic detection of lamphead and lamp type
constant control,
automatic detection of lamphead (transmitter technology)
square wave,
ca. 200 Hz
flicker free
square wave,,
ca. 200 Hz
flicker free
square wave,,
ca. 200 Hz
flicker free
square wave,,
ca. 200 Hz
flicker free
50-100% of nominal lamp power50-100% of nominal lamp power50-100% of nominal lamp power50-100% of nominal lamp power
cold start and hot restrikecold start and hot restrikecold start and hot restrikecold start and hot restrike
typ. < 3%typ. < 3%typ. < 3%typ. < 3%

155 x 91 x 270 mm483 (19") x 177 (4 height units) x 583 mm483 (19") x 177 (4 height units) x 530 mm483 (19") x 177 (4 height units) x 530 mm
ca. 3 kgca. 20 kgca. 24 kgca. 22 kg
IP 22IP 21IP 20IP 20
-20 to +50 °C
10% to 80%
(not condensing)
-10 to +50 °C-10 to +50 °C-10 to +50 °C
aluminium profile housing19" rack with three exchangeable power modules19" rack with three exchangeable power modules19" rack with three exchangeable power modules

XXXX
X
XXXX
XXXX
   X
XXXX
  XX

  XX
  XX
XXXX
  X
XXXX







 XXX
