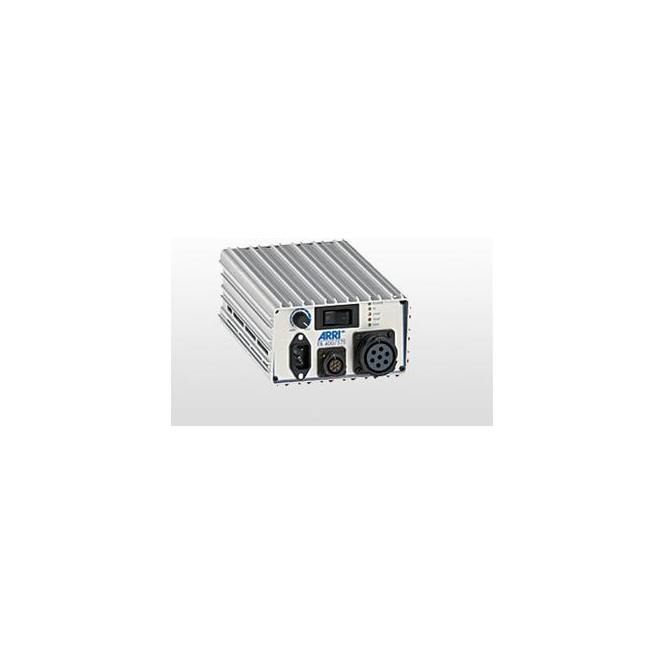

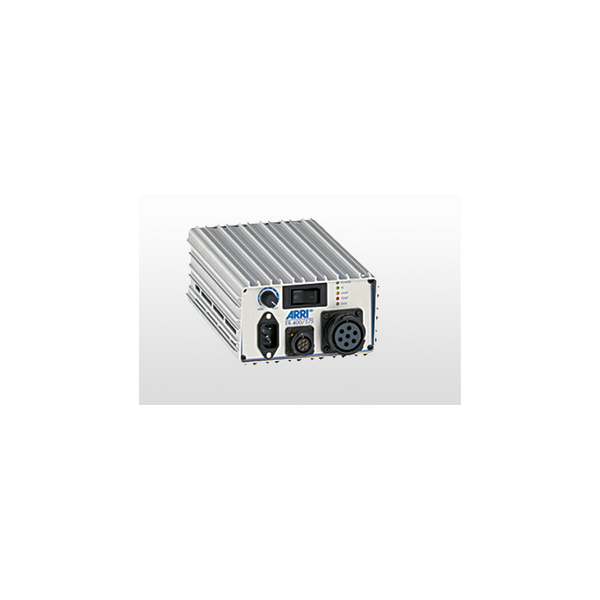

Arri L2.76262.0 EB 400/575 Schaltbau, 90-125 V/180-250 V

code: L2.76262.0
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £150

L2.76262.0 EB 400/575 Schaltbau, 90-125 V/180-250 V, 110 Hz, Schuko-Plug, ALF, 400 W-connector: VEAM, 575 W-connector: Schaltbau, aluminium profile housing

ARRI equipment is known for the high robustness demanded for film location work, but for run-and-gun applications lightweight ballasts up to 575 W are available with lightweight extruded aluminium housings, an ideal match for the ARRI Pocket PAR lampheads.

Features:

  •     ALF (Active Line Filter)
  •     Line over-voltage protection
  •     Protection from overheating
  •     Constant lamp power and colour temperature over the lifetime of the lamp
  •     Possibility to dim the light between 50 and 100%
  •     Automatic switch-over for 115V~ and 230V~ power supplies
  •     Active Line Filter - power factor correction
  •     Compact and very lightweight aluminium profile housing
  •     At least 5% greater light intensity compared to magnetic ballasts
  •     At least 20% longer bulb life compared to magnetic ballasts
  •     Automatic detection of connected luminaire
  •     Good service assistance
  •     Detailed technical documentation

Specification:

 VersionsARRI Lightweight
EB 125/200
ARRI Lightweight
EB 400/575
ARRI Lightweight
EB 400/575
 Ident-No.L2.76013.BL2.76260.0L2.76262.0
Mains Supply:
 Line Power240 VA (max.)667 VA (max.)667 VA (max.)
 Supply Voltage90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE
90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE
90-130 V~ / 180-250 V~
50/60 Hz 1, N, PE
 Nominal Current2.7-1.8 A / 1.3-1.0 A7.4-5.1 A / 3.7-2.7 A7.4-5.1 A / 3.7-2.7 A
 Power Factorcos Φ≈ 0.98cos Φ≈ 0.98cos Φ≈ 0.98
Lamp Connection:
 Lamphead connectorBinder / AmphenolInternational (VEAM)Schaltbau
 Lamp Power125 W / 200 W400 W / 575 W 400 W / 575 W
 Power Adaptionconstant control,
automatic detection of lamphead
constant control,
automatic detection of lamphead
constant control,
automatic detection of lamphead
 Current Characteristicsquare wave,
ca. 200 Hz,
flicker free
square wave,
ca. 200 Hz,
flicker free
square wave,
ca. 200 Hz,
flicker free
 Dimming70-100% of nominal lamp power50-100% of nominal lamp power50-100% of nominal lamp power
 Startingcold start and hot restrikecold start and hot restrikecold start and hot restrike
 Typical Light Rippletyp. < 3%typ. < 3%typ. < 3%
General:
 Dimensions130 x• 70 x• 240 mm155 x• 91 x• 270 mm155 x• 91 x• 270 mm
 Weightca. 1.7 kgca. 3 kgca. 3 kg
 Protective RateIP 21IP 22IP 22
 Ambient Conditions-20 to +50 °C
10% to 80%
(not condensing)
-20 to +50 °C
10% to 80%
(not condensing)
-20 to +50 °C
10% to 80%
(not condensing)
 Housingaluminium profile housingaluminium profile housingaluminium profile housing
Indicators:
 ON / OFFXXX
 Protective Earth XX
 Lamp OnXXX
 Over TemperatureXXX
 Output Mode (Frequency)
 Remote / DMX XX
 Detected Lamp Power
Features:
 Automatic Lamp Recognition
 Automatic Lamphead RecognitionXXX
 Active Line Filter (ALF)XXX
 Compensation for Cable Loss (CCL)
 DimmingXXX
Output Type:
 50 Hz (low noise)
 60 Hz (low noise)
 75 Hz (flicker free)
 300 Hz (flicker free High Speed)
 1000 Hz (flicker free High Speed
Options:
 DMX XX
