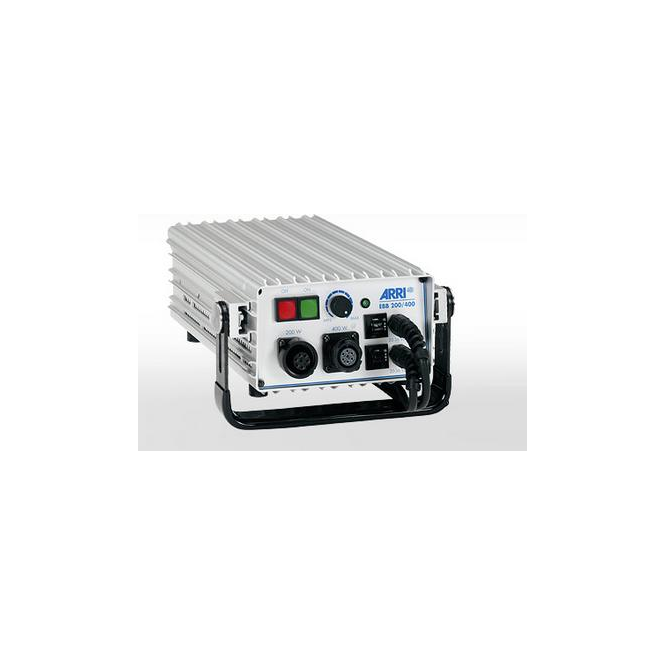

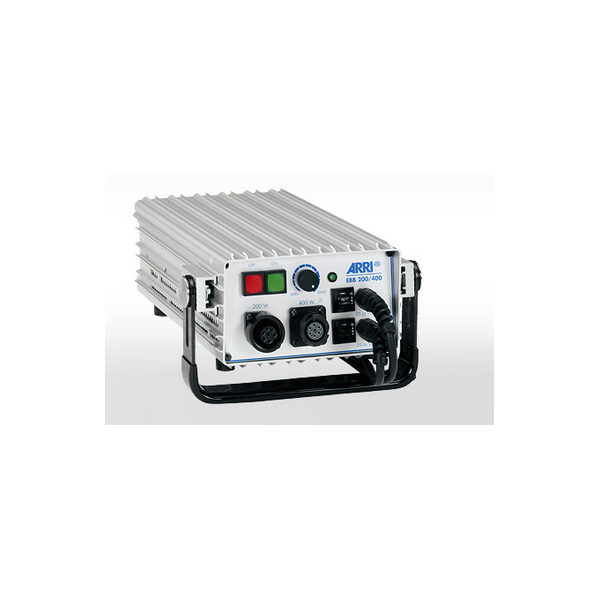

Arri L2.76270.B EBB 200/400, 20-34 VDC

code: L2.76270.B
Item out of Stock | Usually dispatched within 24 hours
Loading...
Free Delivery On Orders Over £250

L2.76270.B EBB 200/400, 20-34 VDC, 110 Hz, 2 x XLR-4 plug, 200 W-connector: Amphenol, 400 W-connector: VEAM, aluminium profile housing

In addition to its well known electronic ballasts, ARRI has developed several DC ballasts: 125/200W, 200/400W and 575/1200W. The two smaller units can be combined with battery belts for use as portable daylight systems. The bigger 575/1200W DC ballast is often used where no AC public net is available.

Features:

  •     No additional adaptation required
  •     Detection of the connected luminary through lamp connector
  •     Protection against:

        under/over-voltage on DC input
        DC polarity reversal
        overheating

  •     Power switches off automatically after 3 seconds when lamp doesn't strike
  •     Detailed service documentation with test procedures
  •     Good service assistance

Specification:

Electronic Battery Ballast:
 Versions ARRI BatteryARRI Battery
  EBB 125/200EBB 200/400
 Ident-No.L2.76040.BL2.76270.B
Mains Supply:
 Line Power225 VA (max.)250 VA (max.) with 200 W lamp
490 VA (max.) with 400 W lamp
 Supply Voltage20-36 V DC20-36 V DC
 Nominal Current11.2-6.3 A13-7 A with 200 W lamp
25-13 A with 400 W lamp
 Power Factor--
Lamp Connection:
 Lamphead connectorBinder / AmphenolAmphenol / International
 Lamp Power125 W / 200 W200 W / 400 W
 Power Adaptionconstant controlconstant control,
automatic detection of lamp type
 Current Characteristicsquare wave
150 Hz ± 10 Hz
flicker free
square wave,
approx. 110 Hz
flicker free
 Dimming50-100% of nominal lamp power50-100% of nominal lamp power
 Startingcold start and hot restrikecold start and hot restrike
 Typical Light Rippletyp. < 3%typ. < 3%
General:
 Dimensions130 x• 67 x• 158 mm155 x• 91 x• 26 mm
 Weightca. 1.2 kgca. 2.6 kg
 Protective RateIP 22IP 21
 Ambient Conditions-20 to +45 °C-20 to +50 °C
 Housingaluminium profile housingaluminium profile housing
Indicators:
 ON / OFF X
 Protective Earth
 Lamp On
 Over Temperature
 Output Mode (Frequency)
 Remote / DMX
 Detected Lamp Power
Features:
 Automatic Lamp Recognition X
 Automatic Lamphead Recognition
 Active Line Filter (ALF)
 Compensation for Cable Loss (CCL)
 DimmingXX
Output Type:
 50 Hz (low noise)
 60 Hz (low noise)
 75 Hz (flicker free)
 300 Hz (flicker free High Speed)
 1000 Hz (flicker free High Speed
Options:
 DMX
