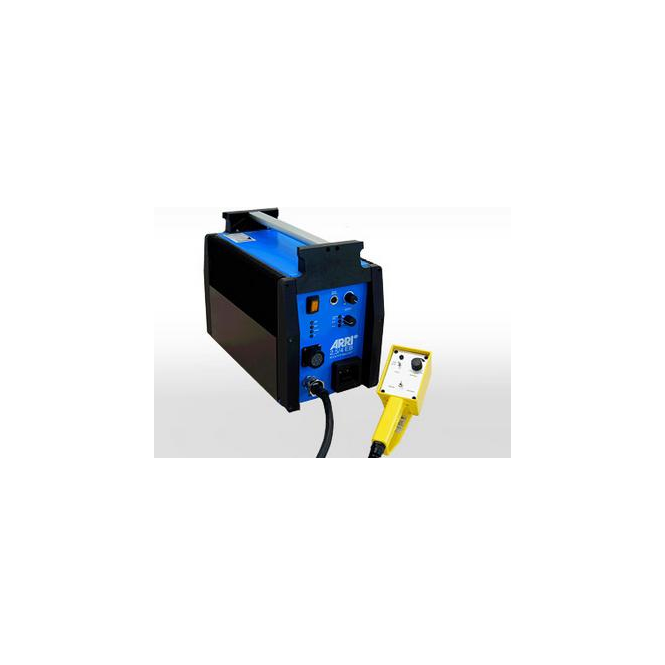

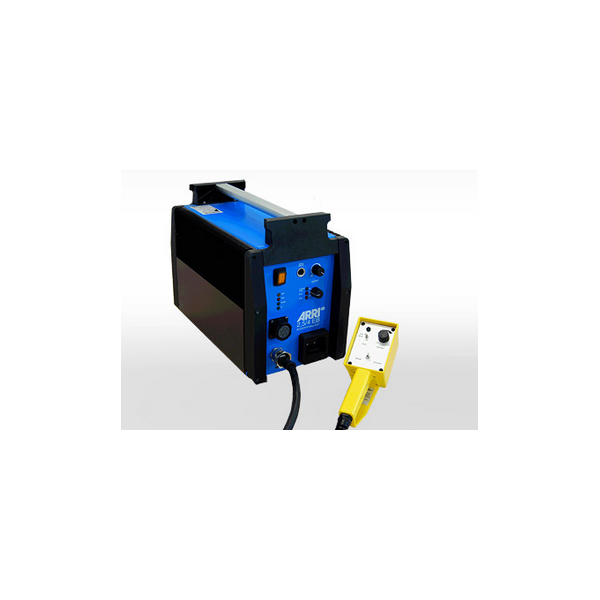

Arri L2.76693.0 EB 4000 Booster, 190-250 V

code: L2.76693.0
Please login to view our prices
Status   |   Usually dispatched within 24 hours
Loading...
Make An Offer
Ask a Question
Price Match
Add to Compare

L2.76693.0 EB 4000 Booster, 190-250 V, Harting connector, ALF, A2 (analog remote control), 19" rack 4HE

The electronic ballast with booster function is the ideal workhorse for high speed cinematography. On top of all the features of a standard electronic ballast such as the Active Line Filter and flicker-free operation, this ballast includes the possibility to boost the lamp power to 200% for short periods.

When the boost function is activated, the ballast can deliver up to 8 kW for up to 20 seconds and repeat this every 180 seconds. Using automatic timer circuitry, the power is optimally delivered to the lamp in order to maximize its lifetime.

The ballast combines ideally with the ARRISUN 2.5/4 kW or the ARRI X 2.5/4 kW for crash test site applications such as airbag and other component tests.

An optional hard-wired remote control unit allows remote ON/OFF, boost ON/OFF and dimmer control for manual operation. Customers will have no problems integrating the ballast with their own control systems.

Specification:

Electronic Booster Ballast:
  Versions ARRI Booster
EB 4000
  Ident-No. L2.76693.0
Mains Supply:
  Line Power 4650 VA (max.)
9400 VA (max.) in boost mode (max. 20 sec.)
  Supply Voltage 190 – 250 V~
50/60 Hz 1, N, PE
  Nominal Current 11.2-6.3 A24.5 – 18.6 A
49.5 – 37.6 A (boost mode)
  Power Factor cos Φ≈ 0.98
Lamp Connection:
  Lamphead connector Harting HAN 6 HSB (F)
  Lamp Power 4200 W / 8400 W in boost mode
  Power Adaption constant control
  Current Characteristic square wave,
75 "Flicker Free"
  Dimming 50-100% of nominal lamp power
  Starting cold start and hot restrike
  Typical Light Ripple typ. < 3%
General:
  Dimensions 482 x• 177 x• 490 mm
  Weight ca. 23 kg
  Protective Rate IP 20
  Ambient Conditions -10 to +45 °C
  Housing aluminium, 19" 4U rack mount
Indicators:
  Power X
  Ballast On X
  Lamp On X
  Over Temperature X
  Output Mode (Frequency)
  Remote / DMX
  Detected Lamp Power
Features:
  Automatic Lamp Recognition
  Automatic Lamphead Recognition
  Active Line Filter (ALF)
  Compensation for Cable Loss (CCL)
  Dimming
Output Type:
  50 Hz (low noise)
  60 Hz (low noise)
  75 Hz (flicker free)
  300 Hz (flicker free High Speed)
  1000 Hz (flicker free High Speed
Options:
  Remote X
  Hour Counter X
