Panasonic AJ-PX270EJ Camcorder Kit 540 Hrs, Cards, Battery, Charger

Panasonic AJ-PX270EJ Camcorder Kit 540 Hrs, Cards, Battery, Charger

Excellent condition, 3 month warranty

A reliable and industry-proven Panasonic AJ-PX270EJ professional handheld camcorder, ideal for broadcast, ENG, and production work. This unit has 540 operating hours, making it a great low-usage option for its class.



The PX270 series is well known for its AVC-Intra recording, P2 workflow, and excellent image quality, making it suitable for news gathering, documentaries, and corporate production.

General

Power  DC 7.2 V (when the battery is used)

DC 12 V (when the AC adaptor is used)

Power Consumption    19.5 W (when the LCD monitor is used)

Operating Temperature           0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity    10 % to 85 % (relative humidity)

Weight*1        Approx. 2.2 kg (4.9 lbs.) (body only, excluding lens hood, battery, and accessories)

Approx. 2.6 kg (5.7 lbs.) (including lens hood, supplied battery, and microphone holder)

Dimensions*1 176 mm (H) x 171 mm (W) x 329 mm (D) (6-15/16 inches x 6-23/32 inches x 12-15/16 inches)

(excluding protrusion)

Camera Unit

Pickup Device  1/3-type 2.2 million pixels, MOS solid state image sensor x 3

Lens     Optical image stabilizer lens, optical 22x motorized zoom

F1.6 to F3.2 (f=3.9 mm to 86 mm)

35 mm conversion: 28 mm to 616 mm (16:9)

Filter Diameter           72 mm

Optical System Prism system

ND Filter          OFF, 1/4, 1/16, 1/64

Shortest Shooting Distance

(M.O.D.)          1.1 m from the front lens

Approx. 0.06 m from front lens (When Macro=On, at wide-end)

Gain Setting     L/M/H selector switch, -3 dB to 18 dB (in 1 dB steps) (Negative value of gain is only in [HIGH SENS.] mode.)

(When assigning [S.GAIN] to the USER button: Switching between 24 dB, 30 dB, and 36 dB)

Color Temperature Setting      ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)

Shutter Speed  When [SYSTEM MODE] = 59.94 Hz

60i/60p mode 1/60 (OFF) sec., 1/100 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.

30p mode        1/30 sec., 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.,

1/2000 sec.

24p mode        1/24 sec., 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.,

1/2000 sec.

When [SYSTEM MODE] = 50 Hz

50i/50p mode 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec., 1/2000 sec.

25p mode        1/25 sec., 1/50 (OFF) sec., 1/60 sec., 1/120 sec., 1/250 sec., 1/500 sec., 1/1000 sec.,

1/2000 sec.

Slow Shutter Speed     When [SYSTEM MODE] = 59.94 Hz (Setting is possible when [VFR]=[OFF])

60i/60p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/15 sec., 1/30 sec.

30p mode        1/1 sec., 1/2 sec., 1/4 sec., 1/6sec., 1/15 sec

24p mode        1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec

When [SYSTEM MODE] = 50 Hz (Setting is possible when [VFR]=[OFF])

50i/50p mode 1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec., 1/25 sec.

25p mode        1/1 sec., 1/2 sec., 1/4 sec., 1/6 sec., 1/12 sec.

Synchro Scan Shutter  When [SYSTEM MODE] = 59.94 Hz and [SYNC SCAN TYPE] = [sec]

60i/60p mode 1/60.0 sec. to 1/249.8 sec.

30p mode        1/30.0 sec. to 1/249.8 sec.

24p mode        1/24.0 sec. to 1/249.8 sec.

When [SYSTEM MODE] = 50 Hz and [SYNC SCAN TYPE] = [sec]

50i/50p mode 1/50.0 sec. to 1/250.0 sec.

25p mode        1/25.0 sec. to 1/250.0 sec

Shutter Open Angle    3.0 deg to 180.0 deg to 360.0 deg (in 0.5 deg steps, angle display)

VFR Recording Frame Rate     1080/59.94p    1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44,

48, 54, and 60 (frames per second)

1080/50p         1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42,

45, 48, and 50 (frames per second)

Sensitivity        [HIGH SENS.] mode     F11 (2000 lx, 3200 K, 89.9 % reflection, 1080/59.94i)

F12 (2000 lx, 3200 K, 89.9 % reflection, 1080/50i)

Minimum Subject Illumination           0.02 lx (F1.6, gain 18 dB, [1S.EXP.], [HIGH SENS.] mode)

Digital Zoom    x2/x5/x10

Lens Hood       Hood with lens cover

Memory Card Recorder

Recording Media         microP2 card*2, P2 card

Recording Slot microP2 card slot x2, P2 card slot x1

System Format            1080/59.94p, 1080/59.94i, 1080/23.98PsF, 720/59.94p, 480/59.94i, 1080/50p, 1080/50i, 720/50p, 576/50i

Recording Format       AVC-Intra200/AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25/AVC-LongG12

DVCPRO HD/DVCPRO50/DVCPRO/DV formats

Recording Video Signal           1080/59.94p, 1080/59.94i, 1080/29.97pN, 1080/23.98pN, 720/59.94p, 720/29.97pN, 720/23.98pN, 480/59.94i, 480/29.97p,

1080/50p, 1080/50i, 1080/25pN, 720/50p, 720/25pN, 576/50i, 576/25p

Recording/Playback Time*3   AVC-Intra200   16GB x 1: Approx. 8min., 32GB x 1: Approx. 16min., 64GB x 1: Approx. 32min.

AVC-Intra100   16GB x 1: Approx. 16min., 32GB x 1: Approx. 32min., 64GB x 1: Approx. 64min.

AVC-Intra50     16GB x 1: Approx. 32min., 32GB x 1: Approx. 64min., 64GB x 1: Approx. 128min.

AVC-LongG50  16GB x 1: Approx. 32min., 32GB x 1: Approx. 64min., 64GB x 1: Approx. 128min.

AVC-LongG25  16GB x 1: Approx. 64min., 32GB x 1: Approx. 128min., 64GB x 1: Approx. 256min.

AVC-LongG12  16GB x 1: Approx. 120min., 32GB x 1: Approx. 240min., 64GB x 1: Approx. 480min.

DVCPRO HD    16GB x 1: Approx. 16min., 32GB x 1: Approx. 32min., 64GB x 1: Approx. 64min.

DVCPRO 50     16GB x 1: Approx. 32min., 32GB x 1: Approx. 64min., 64GB x 1: Approx. 128min.

DVCPRO/DV    16GB x 1: Approx. 64min., 32GB x 1: Approx. 128min., 64GB x 1: Approx. 256min.

Digital Video

Sampling Frequency    AVC-Intra200/AVC-Intra100/

AVC-Intra50/AVC-LongG50/

AVC-LongG25/AVC-LongG12/

DVCPRO HD    Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz)

Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50 Hz)

DVCPRO50      Y: 13.5 MHz, PB/PR: 6.75 MHz

DVCPRO          Y: 13.5 MHz, PB/PR: 3.375 MHz

Quantization   AVC-Intra200/AVC-Intra100/AVC-Intra50/AVC-LongG50/AVC-LongG25: 10 bits

AVC-LongG12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bits

Video Compression Format    AVC-Intra200/AVC-Intra100/

AVC-Intra50     MPEG-4 AVC/H.264 Intra Profile

AVC-LongG50/AVC-LongG25/

AVC-LongG12  MPEG-4 AVC/H.264

DVCPRO HD    DV-Based Compression (SMPTE 370M)

DVCPRO50/DVCPRO   DV-Based Compression (SMPTE 314M)

DV       DV Compression (IEC 61834-2)

Digital Audio

Recording Audio Signal           AVC-Intra200/AVC-LongG50/

AVC-LongG25  48 kHz/24 bits, 4 CH

AVC-Intra100/AVC-Intra50      48 kHz/16 bits, 4 CH and 48 kHz/24 bits, 4 CH switch

AVC-LongG12/DVCPRO HD/

DVCPRO50      48 kHz/16 bits, 4 CH

DVCPRO/DV    48 kHz/16 bits, 4 CH

Headroom       12 dB/18 dB/20 dB switchable menu

AVC Proxy

File Format      MOV

Video Compression Format    H.264/AVC Baseline Profile, H.264/AVC High Profile

Audio Compression Format    AAC‑LC, Linear PCM

Approx. Recording Time*4(1 GB)       AVC-G6 2CH MOV       Approx. 13 min.

SHQ 2CH MOV Approx. 25 min.

HQ 2CH MOV  Approx. 78 min.

LOW 2CH MOV            Approx. 135 min.

Video Input/Output

SDI OUT           BNC x 1, HD (3G/1.5G), SD: 0.8 V [p-p], 75 Ω

Video OUT       BNC x 1, Also used as the GENLOCK IN, IN/OUT switch selection

Composite: 1.0 V [p-p], 75 Ω

HDMI OUT       HDMI x 1 (HDMI type A terminal, not compatible with VIERA Link)

Audio Input

Built-in Microphone    Supports stereo microphone

AUDIO INPUT 1/AUDIO INPUT 2         XLR x 2, 3 pin.Input high impedance, LINE/MIC switch selection

LINE: 4 dBu/0 dBu (selectable menu)

MIC: -40 dBu/-50 dBu/-60 dBu (selectable menu),

+48 V on/off (switch selection)

Audio Output

AUDIO OUT     3.5 mm diameter stereo mini jack x 1, Output level: 600 Ω, 316 mV

Headphones    3.5 mm diameter stereo mini jack x 1

100 Ω, -16 dBV (32 Ω load, at maximum output level)

Speaker           20 mm diameter, round x 1

Other Input/Output

CAM REMOTE 2.5 mm diameter super mini jack x1 (ZOOM S/S)

3.5 mm diameter mini jack x1 (FOCUS IRIS)

GENLOCK IN    BNCx1, also used as the VIDEO OUT, IN/OUT switch selection,

1.0 V [p-p], 75 Ω

TC IN/OUT       BNCx1

Used as the input and output terminals, IN/OUT switch selection

Input: 1.0 V - 4.0 V [p-p], 10 kΩ

Output: 2.0 V±0.5 V [p-p], low impedance

LAN      100BASE‑TX/10BASE‑T

USB2.0 DEVICE (device)          Type miniB connector, 4 pin

USB3.0 HOST (host)    Type A connector, 9 pin

USB2.0 HOST(sub-host)           Type A connector, 4 pin (exclusively for wireless module AJ-WM30)

DC IN 12V        DC 12 V (DC 10.5 V - 13.5 V), EIAJ type 4

Monitor

LCD Monitor    3.5 type QHD color monitor (Approx. 1560000 dots)

Viewfinder       0.5 type OLED (organic EL display)



(Approx. 2,360,000 dots, video display area: Approx. 1,770,000 dots)

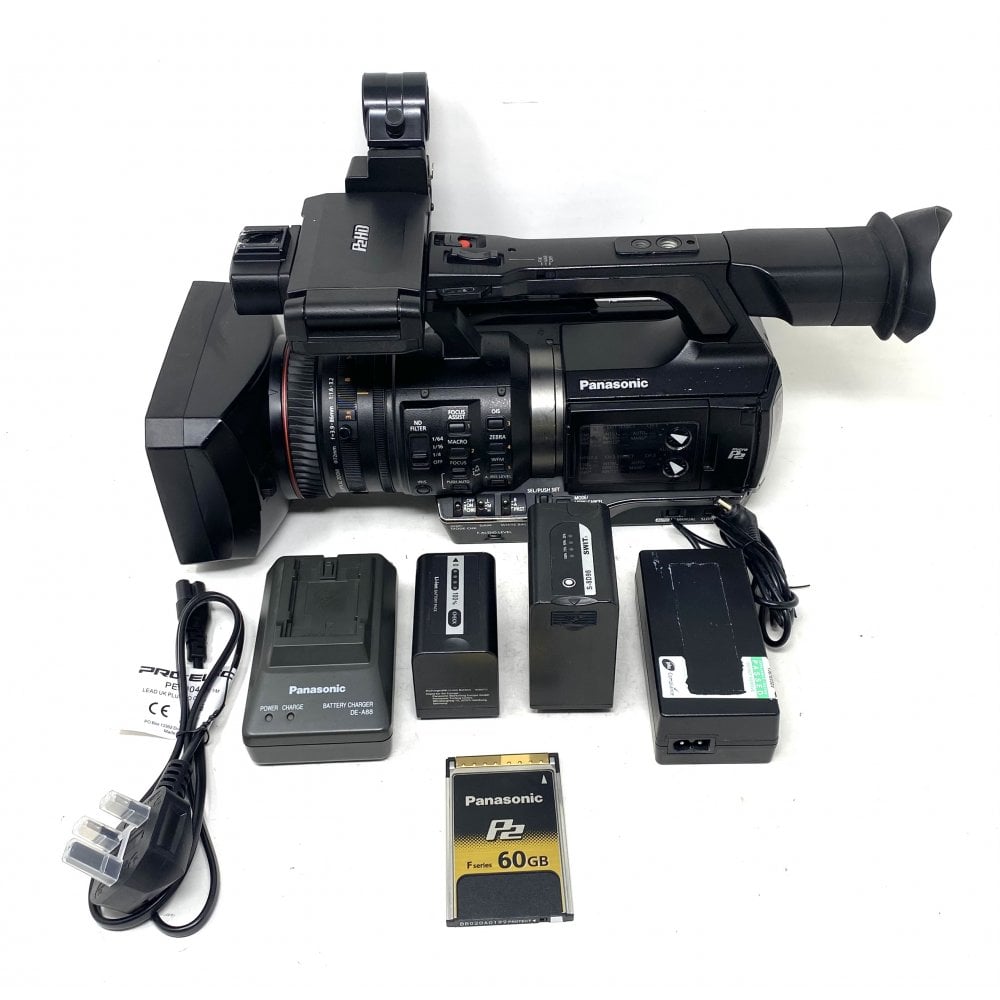

In the box:

1 x Panasonic AJ PX 270EJ camera, used

1x PSU (vsk0726)

1x Panasonic Single Battery charger (DE-A88)

1x Swit Battery (S-8d58)

1x Panasonic Battery (vw-vbd58)

1x 60gb P2 Memory Card (ajp2E060FG)
