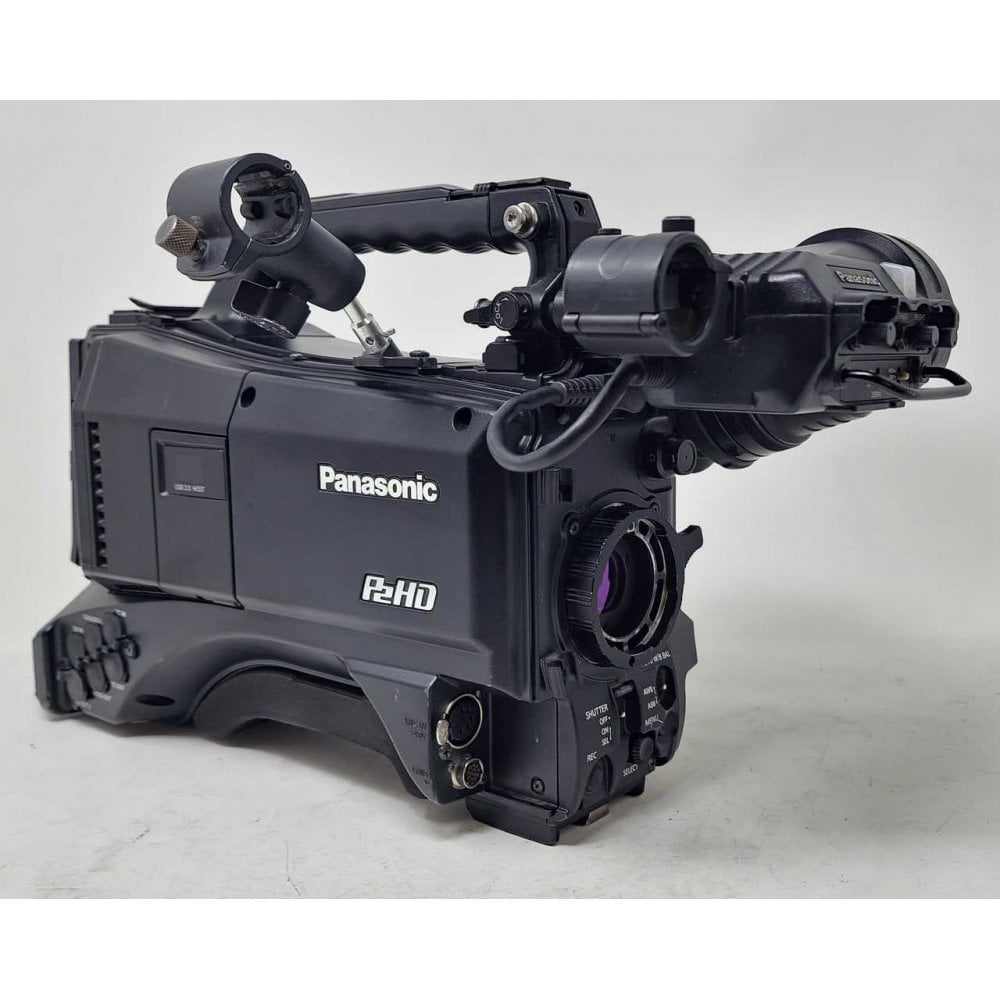

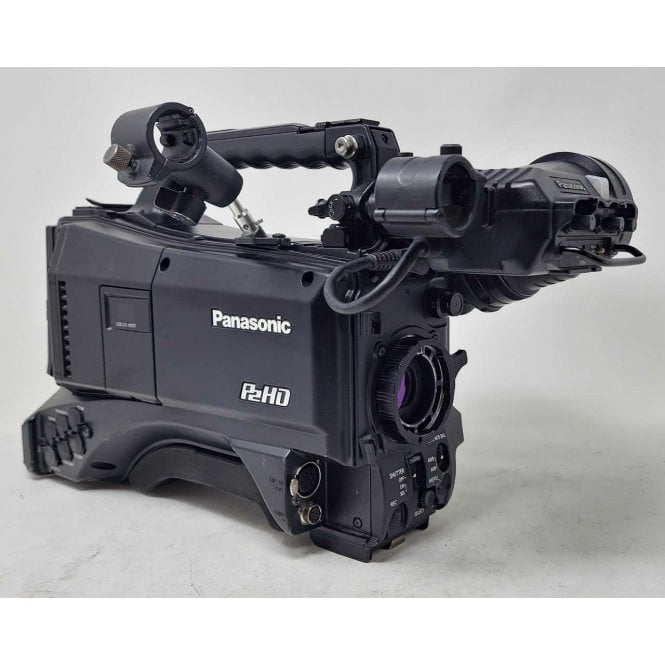

Panasonic Aj-Px5000G 2/3 type, 3 Chip, Avc-ultra P2 HD camcorder, 1252 hrs, used

Panasonic Aj-Px5000G 2/3 type, 3 Chip, Avc-ultra P2 HD camcorder, 1252 hrs, used(FMP59276KSSH)

Note-Missing plastic window on P2 cards cover

Panasonic AVC-ULTRA offers master-quality and/or low-bit-rate 10-bit, 4:2:2 recording in Full raster HD to meet a variety of user needs from mastering to transmission. Addressing the need for high-speed file exchange, its high-resolution AVC-Proxy encodes in parallel with higher bandwidth production formats, enabling fast, efficient offline editing, at bit rates from 3.5 megabits down to 800 kilobits per second.

Like the current AG-HPX600, the PX5000G provides innovative network functionality to improve workflows. The PX5000G AVC-Proxy files and Network function (wired/wireless LAN) make it possible to configure a workflow for previewing images, editing metadata, editing playlists, and uploading motion images quickly and at low cost with a PC/Mac, tablet, or smartphone. A new 3G/4G/LTE dongle for wireless workflow over a mobile network is scheduled for the near future.

The camcorder incorporates a choice of AVC-LongG quality levels, including AVC-LongG50 and AVC-LongG25. Designed for applications where file size is critical, these 10-bit, 4:2:2 sampled codecs record in a much smaller file size, saving storage cost and transfer times over MPEG-2 while maintaining equal or better video quality. In the future, lower bit rate AVC-LongG12 will be made available.

The PX5000G offers optional AVC-Intra200 recording, which at twice the bit rate per frame of AVC-Intra100 is visually lossless, delivering a master quality codec in an affordable, file-based camera. The AVC-Intra200 option will yield a cost-effective approach to network-level program acquisition, film-outs and higher levels of color correction. In addition to AVC-LongG and AVC-Intra100/50, the PX5000G offers standard recording in DVCPRO HD, DVCPRO50, DVCPRO and DV. In addition to 1080/60i, the AJ-PX5000G supports 24p, 30p, 60p (AVC-Intra100 only), and 720p multi HD format and SD recording. Also, 50i, 50p, and 25p are supported by 59.94 Hz/50 Hz switching.

Weighing only 7.5 pounds, the camera has two microP2 slots and two standard P2 card slots, as well as an SD card slot for proxy/metadata recording. MicroP2 cards are substantially downsized to match the size of an SD card, and offer a considerable reduction in cost compared to a P2 card.

Professional interfaces include MON out (can be set to output HD-SDI), HDMI out, HD/SD-SDI in/out, 3G-SDI out, genlock in for multi-camera operation, timecode in/out, USB 3.0 (host) and a two-channel UniSlot compatible wireless receiver.

 The PX5000G s three 2.2M pixel MOS sensors deliver a horizontal resolution of 1000 TV lines; the camcorder achieves high F12 (59.94 Hz)/F13 (50 Hz) sensitivity and produces excellent images with an S/N ratio of 62 dB. The shoulder-type design accommodates a variety of interchangeable B4 mount 2/3 lenses.

 The camcorder will be equipped with Chromatic Aberration Compensation (CAC) to maximize lens performance; Dynamic Range Stretch (DRS) function to optimize scene image contrast at the pixel level, reducing overexposure and crushed shadow content and dramatically improving human skin rendition; and a highly accurate flash band detection and compensation algorithm that minimizes partial image exposure due to strobe lighting. The PX5000G delivers seven-mode (HD/SD/FILMLIKE 1/FILMLIKE 2/FILMLIKE 3/FILM-REC/VIDEO-REC) gamma selection and extensive digital image settings.

Innovative features include a smart user interface that permits accessibility to the camera extensive functions from an LCD display on the side of the camera; a 16:9, 3.5-inch, 920,000-dot resolution LCD color viewfinder, which doubles as a LCD monitor when open; a simplified waveform and vectorscope; a 10-pin remote terminal enabling remote camera operation; and an optional camera studio system.

Audio capabilities include two XLR audio inputs, and recording up to four channels of 48kHz, 24-bit audio in AVC-Intra formats (16-bit in AVC-LongG, DVCPRO HD, DVCPRO and DV).

Standard features include Scan Reverse for use with a cinema lens adaptor; Digital Zoom function for 2x, 3x and 4x boosts; Presettable Shutter Speed from 1/12 to 1/2000 sec plus fully variable Synchro Scan; two four-position optical filters, ND and CC, with four positions each. (The CC filters are 3200K, 4300K, 5600K and 6300K, NDs are Clear, 2, 4, 6 stops.



Image Sensor: 2/3" 3-Chip MOS sensor

Resolution: 2.2 MP

Aspect Ratio: 16:9

Resolution (Video): Full-HD 1920 x 1080

Lens Mount: 2/3" type bayonet

Filter

CC: A: 3200K, B: 4300K, C: 5600K, D: 6300K

ND : 1: clear, 2: 1/4, 3: 1/16, 4: 1/64

Gain: Normal: -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30 dB, High Sens: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 0 dB, Digital Super Gain: Selectable - 6, 10, 12, 15, 20, 24, 28, 34 dB

Shutter Speed

59.94 Hz: 60i/60p mode: 1/100, 1/120, 1/125, 1/500, 1/1000, 1/1200 second, HALF, 30p mode: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 second, HALF, 24p mode: 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 second, HALF, 180.0°, 172.8°, 144.0°, 120.0°, 90.0°, 45°

50 Hz: 50i/50p mode: 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second, HALF, 25p mode: 1/60 sec, 1/120, 1/250, 1/500, 1,1000, 1/2000 second, HALF, 180.0°, 172.8°, 144.0°, 120.0°, 90.0°, 45°

Synchro Scan Shutter

59.94i/p: 1/60.1 sec. to 1/7200 second

50i/p: 1/50.1 sec. to 1/6000 second

29.97p: 1/30.1 sec. to 1/3600 second

23.98p: 1/24.1 sec. to 1/2880 second

25p: 1/25.1 sec. to 1/3000 second

Shutter Opening Angle: 3 to 359.5° in 0.5° steps

Sensitivity

Normal: F9: 2000 Lux, 3200K, 89.9% reflection, 1080i 59.94, F10: 2000 Lux, 3200K, 89.9% reflection, 1080i 50

High Sens: F12: 2000 Lux, 3200K, 89.9% reflection, 1080i 59.94, F13: 2000 Lux, 3200K, 89.9% reflection, 1080i 50

Minimum Subject Illumination: Approx. 0.0004 lx (F1.4, +42 dB (S. GAIN), + 34 dB (DS. GAIN)), S/N Ratio (Video): 62 dB (standard), Horizontal Resolution: 1000 TVL

Memory Card Recorder

Media Card Slots: 2 x P2, 2 x microP2

System Format: 1080i/p 59.94/50,  1080 23.98PsF, 720p 59.94/50, 480i, 576i

Video Recording Format:  AVC-Intra200 (optional firmware upgrade), AVC-LongG50,  AVC-LongG25, AVC-Intra100, AVC-Intra50, AVC-LongG12, DVCPRO HD, DVCPRO50, DVCPRO ,DV

Recording Video Signals: 1080i/p 59.94/50, 1080p/N 29.97/25/23.98 , 720p 59.94/50, 720p/N 29.97/25/23.98, 576i 50,  480i 59.94

Digital Video Recorder

Sampling Frequency

Y: 74.1758 MHz, PB/PR: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, PB/PR: 37.1250 MHz (50Hz), AVC-Intra200 (optional firmware upgrade), AVC-LongG50, AVC-LongG25, AVC-Intra100, AVC-Intra50, AVC-LongG12 ,DVCPRO HD

Y: 13.5 MHz, PB/PR: 6.75 MHz, DVCPRO50

 Y: 13.5 MHz, PB/PR: 3.375 MHz, DVCPRO, DV, Quantizing, 10-bit

Video: AVC-Intra200 (optional firmware upgrade),AVC-LongG50, AVC-LongG25, AVC-Intra100, AVC-Intra50

8-bit: AVC-LongG12, DVCPRO HD, DVCPRO50, DVCPRO, DV

Video Compression

MPEG-4 AVCH/H.264 Intra Profile:

AVC-Intra200 (optional firmware upgrade)

AVC-LongG50

AVC-LongG25

AVC-Intra100

 MPEG-4/H.264

AVC-LongG50

AVC-LongG25

AVC-LongG12

DV-Based Compression

DVCPRO HD

DVCPRO50

DVPRO

DV

Digital Audio

Audio Signal Recording Format

48 kHz/24 bit, 4CH:

AVC-Intra200 (optional firmware upgrade)

AVC-LongG50

AVC-LongG25

48 kHz/16 bit, 4CH and 48 kHz/24 bit, 4CH:

AVC-Intra100

AVC-Intra50

48 kHz/16 bit, 4CH:

AVC-LongG12

DVCPRO HD

DVCPRO50

DVCPRO

DV

Headroom: 18/20 dB (switchable in the menu)

Proxy

Video Compression Format

MPEG4: Simple Profile

H.264/AVC: Baseline Profile

H.264/AVC: High Profile

Audio Compression Format:

AAC-LC

Linear PCM

Recording Time

1GB:

SHQ 2CH MOV: approx. 25 min

HQ 4CH MOV: approx. 72 min

HQ 2CH MOV: approx. 78 min

LOW 2CH MOV: approx. 135 min STD 2CH MP4 Approx. 78 min, AVC-G6 2CH MOV Approx. 13 min

Camera Unit

Input / Output

SDI Input:

1 x BNC

HD-SDI: 3G: 0.8 V [p-p], 75 Ω 1.5G: 0.8 V [p-p], 75 Ω

SD-SDI: 0.8 V [p-p], 75 Ω

SDI Output 1:



HD-SDI: 3G: 0.8 V [p-p], 75 Ω 1.5G: 0.8 V [p-p], 75 Ω

SD-SDI: 0.8 V [p-p], 75 Ω

SDI Output 2:

HD-SDI: 3G: 0.8 V [p-p], 75 Ω 1.5G: 0.8 V [p-p], 75 Ω

HDMI Input:

1 x HDMI (HDMI type A terminal, not compatible with VIERA Link)

 Audio Input (CH1/CH2) Line/Mic/Mic+48: 2 x XLR 3-pin audio inputs:

LINE: 4 dBu (−3 dBu/0 dBu/4 dBu selectable menu)

MIC: −60 dBu (−60 dBu/−50 dBu selectable menu)

LINE: MIC+48V: Phantom +48 V supported, −60 dBu (−60 dBu/−50 dBu selectable menu)

Microphone:

1 x XLR 5-pin

Phantom +48 V (selectable menu)

-40 dBu (−50 dBu/−40 dBu (selectable menu)

Wireless Slot:

1 x 25 pin, D-SUB, −40 dBu, 2CH supported

Audio Output (CH1/CH2):

Output: 1 x XLR 5-pin equilibrium low impedance 4 dBu (−3 dBu/0 dBu/4 dBu selectable menu)

Headphone: 2 x stereo mini jack

Speaker: 1 x round 20mm diameter

Other

Genlock: 1 x BNC 1.0 V [p-p], 75 Ω

TC IN: 1 x BNC 0.5 V [p-p] - 8 V [p-p], 10 kΩ

TC Out: 1 x BNC 2.0 ±0.5 V [p-p], low impedance

DC In: 1 x XLR 4-pin, 12VDC (Range: 11.0 to 17VDC)

DC Out: 1 x 4-pin, 12VDC (Range: 11.0 to 17VDC), maximum output current 1.5A

Remote: 10-pin

Lens: 12-pin

VF: 20-pin

LAN: 100 Base-TX/10 Base-T

USB 2.0 (device): Type B connector, 4-pin

USB 2.0 (host): Type A connector 4-pin

USB 3.0 (host): Type A connector 9-pin

Light: 1 x 2-pin, 12VDC (Range: 11.0 to 17VDC), maximum output current 4.5A (approx. equivalent to 50 W)

LCD Display

Aspect Ratio: 16:9

Display Size: 3.45" / 8.76 cm

LCD Module: 920,000 dots resolution color LCD

General

29 W: body only, 1080/59.94i, AVC-Intra 100 standard recording status, LCD ON

70 W: with all optional accessories connected and maximum power supplied from each output terminal

Operating Temperature: 32 to 104°F / 0 to 40°C

Operating Humidity: 10 to 85% (relative)

Storage Temperature: -4 to 140°F / -20 to 60°C

Dimensions (W x H x D): 5.8 x 10.5 x 13.5" / 147 x 267 x 342 mm

Weight: 7.5 lb (3.4 kg)

In the Box

1x Panasonic AJ-PX5000 AVC-ULTRA P2 HD Camcorder

1x Panasonic AJ-HVF21KG View finder
