Panasonic AG-HMR10E SD card recorder/player, used

Panasonic AG-HMR10E AVCCAM HD Portable Memory Card Recorder, used

The Panasonic AG-HMR10E is a professional portable HD memory card recorder from Panasonic's AVCCAM range, designed for broadcast, video production and professional field recording applications.

The compact, battery-powered recorder records high-definition video in AVCHD format using MPEG-4 AVC/H.264 compression onto SD and SDHC memory cards. It features HD-SDI input and output, HDMI output and USB connectivity, making it suitable for recording, monitoring, playback and backup of professional HD video signals.

The AG-HMR10E can also be connected to the optional Panasonic AG-HCK10G camera head, creating a compact remote-camera recording system.

Key Features

Panasonic AVCCAM professional HD recorder AVCHD / MPEG-4 AVC/H.264 recording HD-SDI input and output HDMI output 3.5-inch colour LCD monitor SD / SDHC memory card recording Records 1080 and 720 HD formats PH recording mode up to approximately 21 Mbps average / 24 Mbps maximum Professional timecode functionality USB 2.0 connectivity Headphone output and built-in speaker Battery or DC power operation Compatible with optional AG-HCK10G camera head Compact and lightweight design Suitable for broadcast, studio, OB, ENG/EFP and location production Specifications

Specification       Details

Brand    Panasonic

Model   AG-HMR10E

Product type      Professional HD portable recorder

Series    AVCCAM

Recording format             AVCHD

Compression      MPEG-4 AVC/H.264

Recording media               SD / SDHC

Maximum card capacity 32 GB SDHC

HD-SDI input      1 × BNC

HD-SDI output   1 × BNC

HDMI    1 × HDMI Type A

LCD        3.5-inch colour LCD

USB        USB 2.0

Audio    2-channel Dolby Digital

Audio sampling 48 kHz / 16-bit

Power   DC 7.2 V battery / DC 7.3 V AC adaptor

Power consumption        Approx. 6.5 W standalone

Weight  Approx. 580 g excluding battery

Weight with supplied battery      Approx. 691 g

Dimensions         96 × 52.6 × 133 mm

Operating temperature  0°C – 40°C

Operating humidity         10% – 80% RH

Panasonic specifies PH-mode recording at approximately 21 Mbps average, with a maximum of 24 Mbps, and supports HD recording including 1080/50i and 720/50p for the 50 Hz system used by the European HMR10E version.

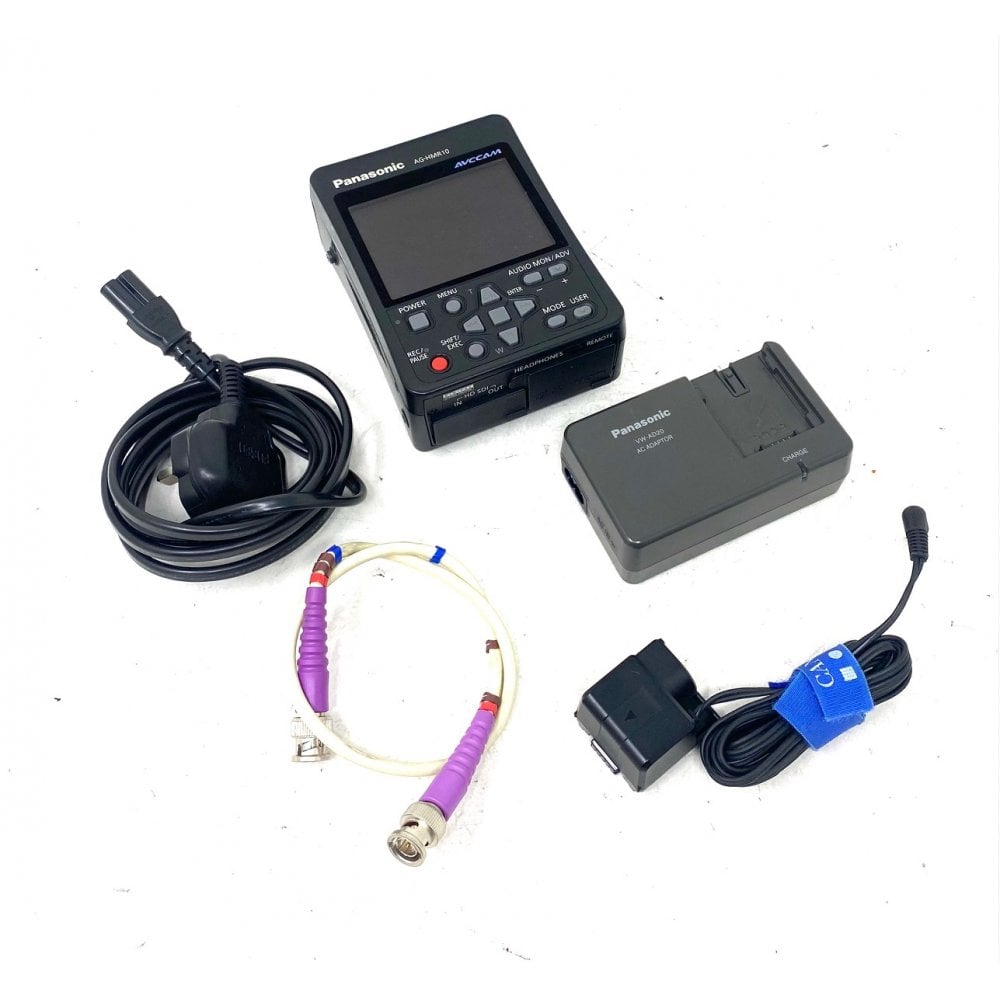

In the Box

1x Panasonic HM10e recorder

1x Dummy battery power

1x Panasonic Charger

1x SDI cable
