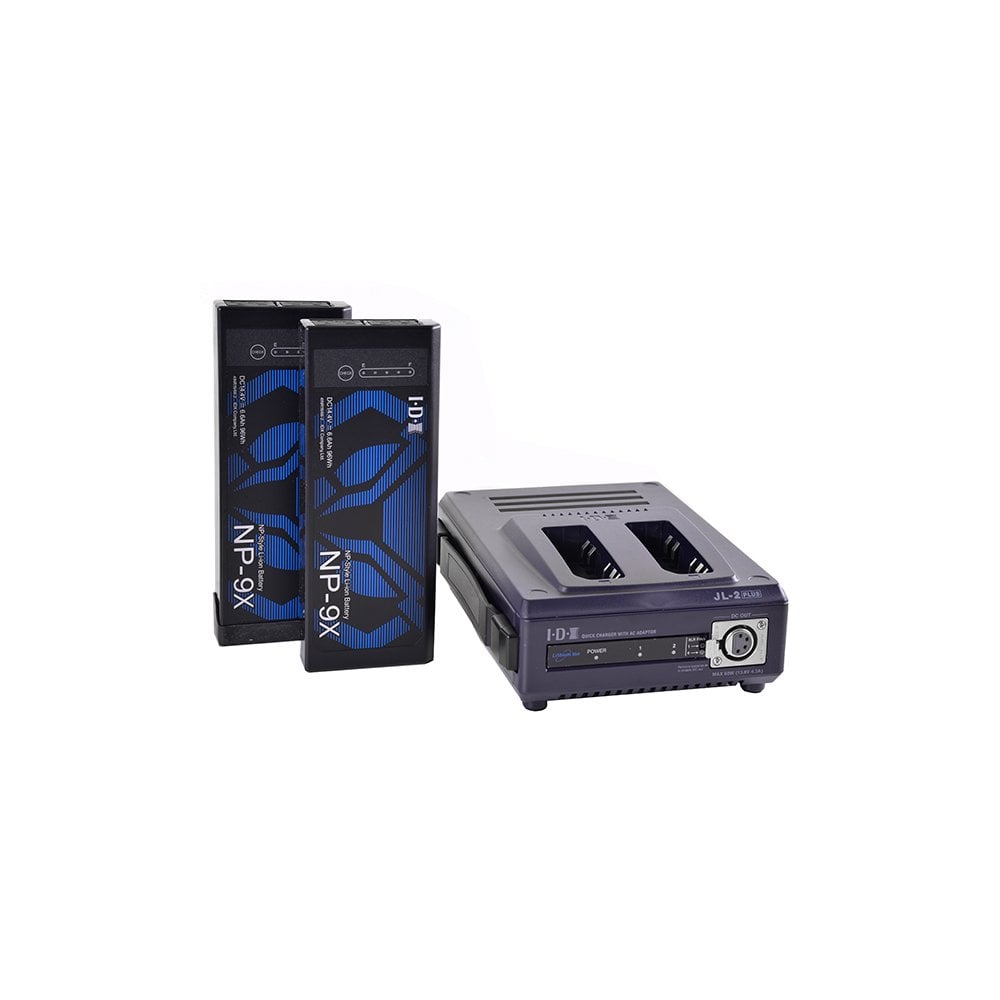

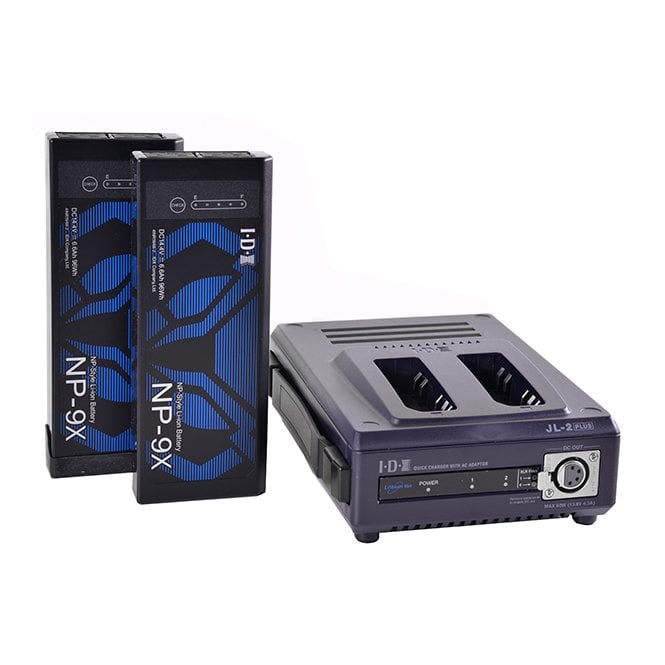

IDX 2x NP-9X Battery Kit W/Charger & AC

code: NP-L2X

£601.50
Secure yours with a deposit of
RRP: £765.00
|
|

Status | Usually dispatched within 24 hours

Add to Compare

NP-9X Features

96Wh capacity

2x D-Tap Outputs

Charging via D-Tap (only with our VL-DT1 charger)

5 Power Indicator LEDs (displays remaining in 10% increments)

Battery circuit protection ensures the NP-9X is protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures

The highest grade Lithium Ion cells are used to ensure the NP-9X is one of the most reliable NP-style batteries on the market, as well as being the safest and most environmentally friendly in its battery classification

Weighing just over 1 lbs., the NP-9X is compact and durable, ideal for regular use and transportation to and from location

JL-2PLUS Features:

Sequential 2-channel charging. The JL-2PLUS will charge the first battery connected to either channel, automatically charging the second battery after the first is fully charged.

Integrated 60W DC power supply provides 60W XLR output for the camera, lighting and ancillary broadcast devices.

JL-2PLUS compatible batteries: All NP Li-ion/Ni-CD batteries and all ENDURA V-Mount Li-ion batteries can be charged with a C-NP2E cable adaptor, available separately from IDX.

Internal safety features protect both the battery and charger from serious damage should faulty or misused batteries be placed on charge. The JL-2PLUS will automatically stop charging should any battery reach an over voltage condition.

Lightweight, high impact polycarbonate enclosure weighs just 1.7 lbs., and features a recessed power switch and integrated carry handle.

Universal AC input voltage for worldwide operation.

Description
Specification
Included In Box
Reviews
(0)

IDX 2x NP-9X Battery Kit W/Charger & AC(NP-L2X, NPL2X, NP L2X)

2x NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)

NP-9X is the successor of the NP-L7S, the industry standard NP-style battery for powering audio equipment. It now features more capacity at 96Wh, two D-Tap outputs for powering additional accessories, and also a 5 LED power indicator to display remaining capacity in 10% increments. One of the D-Tap port is a D-Tap Advanced, which can also be used to charge the battery with the IDX VL-DT1 D-Tap charger. NP-9X is still compatible with all current accessories and chargers like the JL-2PLUS.

1x JL-2PLUS (2ch Sequential Li-ion NP-Style Battery Charger)

The JL-2PLUS will sequentially charge Li-ion, and Ni-Cd NP-style batteries. It will charge the first battery connected to either channel, automatically charging the second battery after the first is fully charged. With the advantage of an integrated 4-pin XLR DC (60W@ 13.8V) power supply, additional equipment such as lighting and other ancillary equipment can also be safely powered when the charge function is not in use.

NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)

Capacity 96Wh (14.4V/ 6.6Ah)

Max Output Voltage 16.8V DC

Nominal Voltage 14.4V DC

Max Discharge Current 4.6A‡ ( total of main connector and d-taps )

End Voltage 11V

D-Tap 50W each

D-Tap Advanced Compatible only with IDX VL-DT1 charger

Battery Protection Over charge, Over discharge, Over current, Thermal protection

Ambient Temperature To charge: 0°C ~ 40°C (32°F ~ 104°F) (50°F ~ 86°F recommended)

To discharge -20°C ~ 45°C (-4°F ~ 113°F) (50°F ~ 104°F recommended)

To store -20°C ~ 65°C (-4°F ~ 104°F)

Dimensions 7.26(W) x 2.80(H) x 0.97(D) inches

Weight 520g (1.15 lbs) approx.

Included Accessories Terminal cover

‡ may vary depending on the operating temperature

JL-2PLUS (2ch Sequential Li-ion NP-Style Battery Charger)

Input Voltage AC 100-240V 50/60Hz

Power Consumption 140VA max

Quick Charge Current Li-ion: 2.3A

Ni-Cd 1.9A

DC Output 60W max

Operating Temperature 32°F ~ 104°F

Dimensions 185(W) x 71(H) x 25(D) mm ( 7.26(W) x 2.80(H) x 0.97(D) inches )

Weight 1.15 lbs approx.

In the Box

NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)

1x JL-2PLUS (2ch Sequential Li-ion NP-Style Battery Charger)
