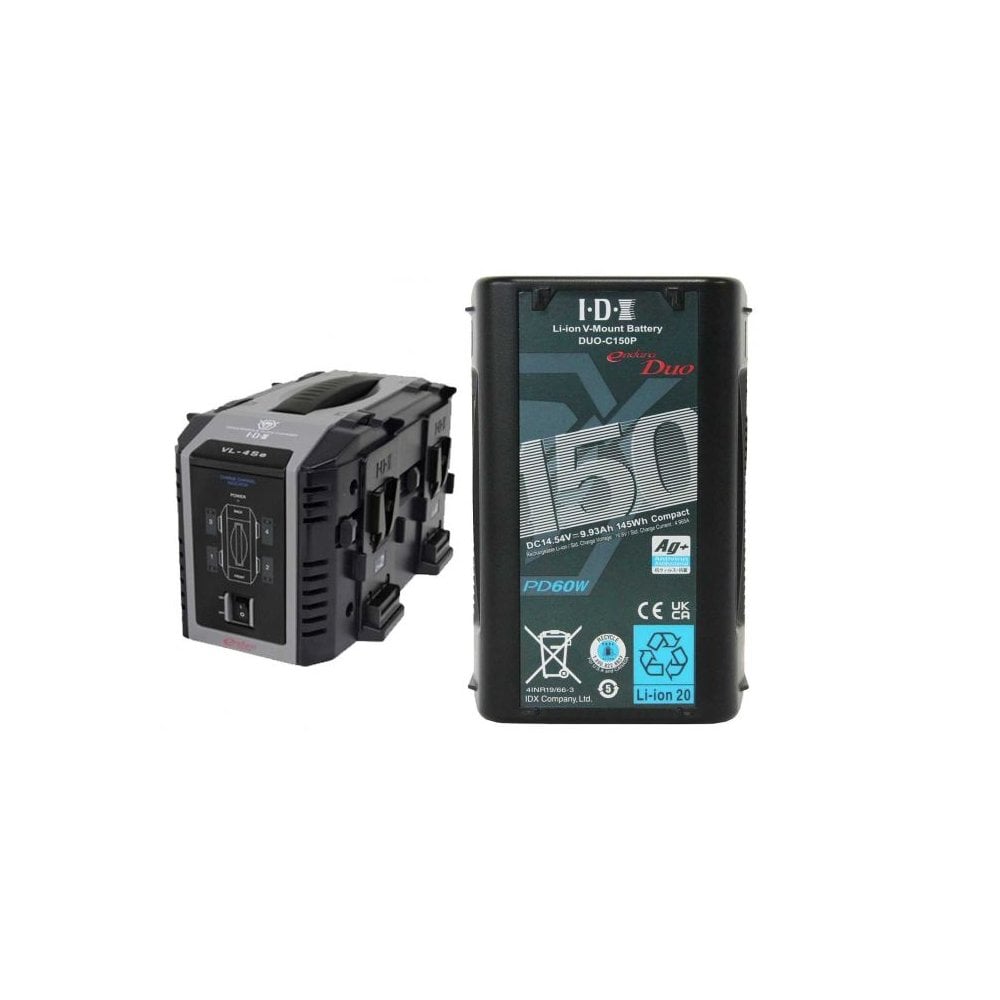

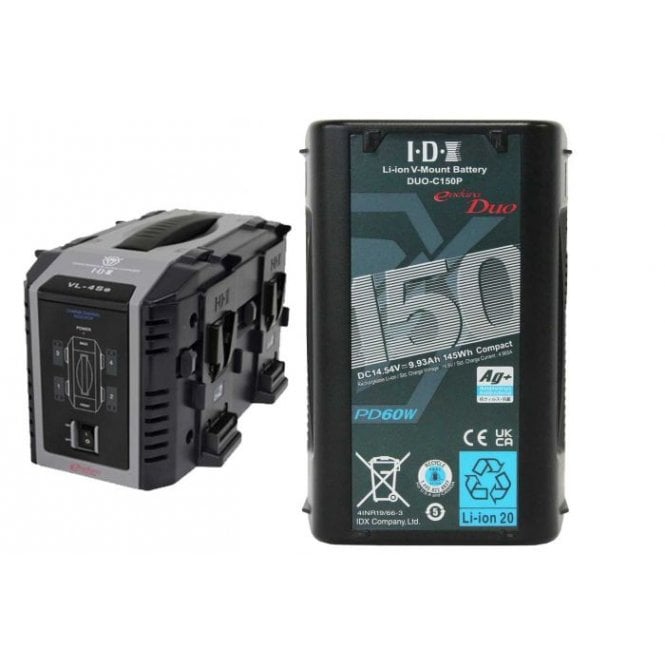

IDX ED-CP150/4Se Battery/Charger Kit

IDX ED-CP150/4Se Battery/Charger Kit(ED-CP150/4Se, ED CP150/4Se, EDCP150/4Se)

DUO-C150P Battery

IDX introduces the next generation in the popular DUO-C Series, the DUO-CP Series. This advanced version offers power taps like those found in theDUO Series for powering accessories. Newly added non-proprietary USB-C PD port for two-way power delivery and charging when used with the new UC-PD1 compact charger, and of course via D-Tapadvanced with the VL-DT1. The UC-PD1 can beused with other portable devices. An anti viral and anti microbial body for hygienic peace of mind.

The DUO-C150P is the successor of the popular DUO-C150 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With 145Wh capacity, the DUO-C150P meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time.

The DUO-C150P also includes two on-battery D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.

VL-4Se Charger

The VL-4Se is a fully simultaneous 4-channel charger, housed in a high-impact, polycarbonate enclosure with a recessed power switch and carrying handle.  Quick and powerful charging make the VL-4Se the perfect choice for broadcast and production facilities with a high battery usage. Each channel is operated independently so batteries can be placed on charge in any order and at any time.

DUO-C150P Battery

Capacity: 145Wh (14.54V/ 9.93Ah)

Max Output Voltage: 16.8V DC

Nominal Voltage: 14.54V DC

Max Discharge Current: 14A‡

D-Tap: 80W each

USB-C PD: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W

End Voltage: 11V

Battery Protection: Over-charge, Over-discharge, Over-current, Thermal protection

Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 122°F (less than 1 month)

Dimensions: 3.82(W) x 5.75(H) x 2.32(D) inches

Weight: 1.98 lbs approx.

‡ may vary depending on the operating temperature

VL-2X 2+2 Charger

Input Voltage AC 100-240V 50/60Hz

Power Consumption 220VA Max.

Quick Charge Current Li-ion

2.7 A (4 Channels)

3A (1-3 Channels)

Quick Charge System Li-ion: Constant Current / Constant Voltage

Pre-Charge Current 140-300mA

Operating Temperature 0°C ~ 40°C

Dimensions 156(W) x 153(H) x 288(D) mm

Weight 2.7Kg approx.

In the Box

4 x DUO-C150P Battery

1 x VL-4Se Charger
