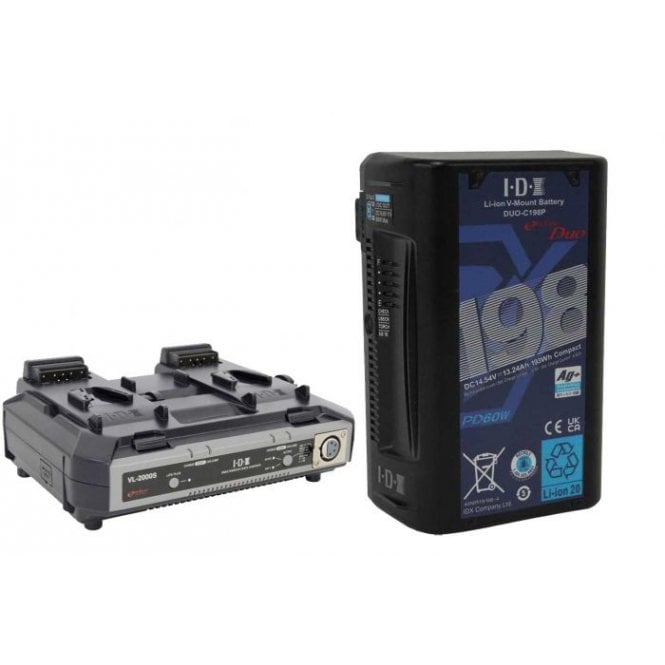

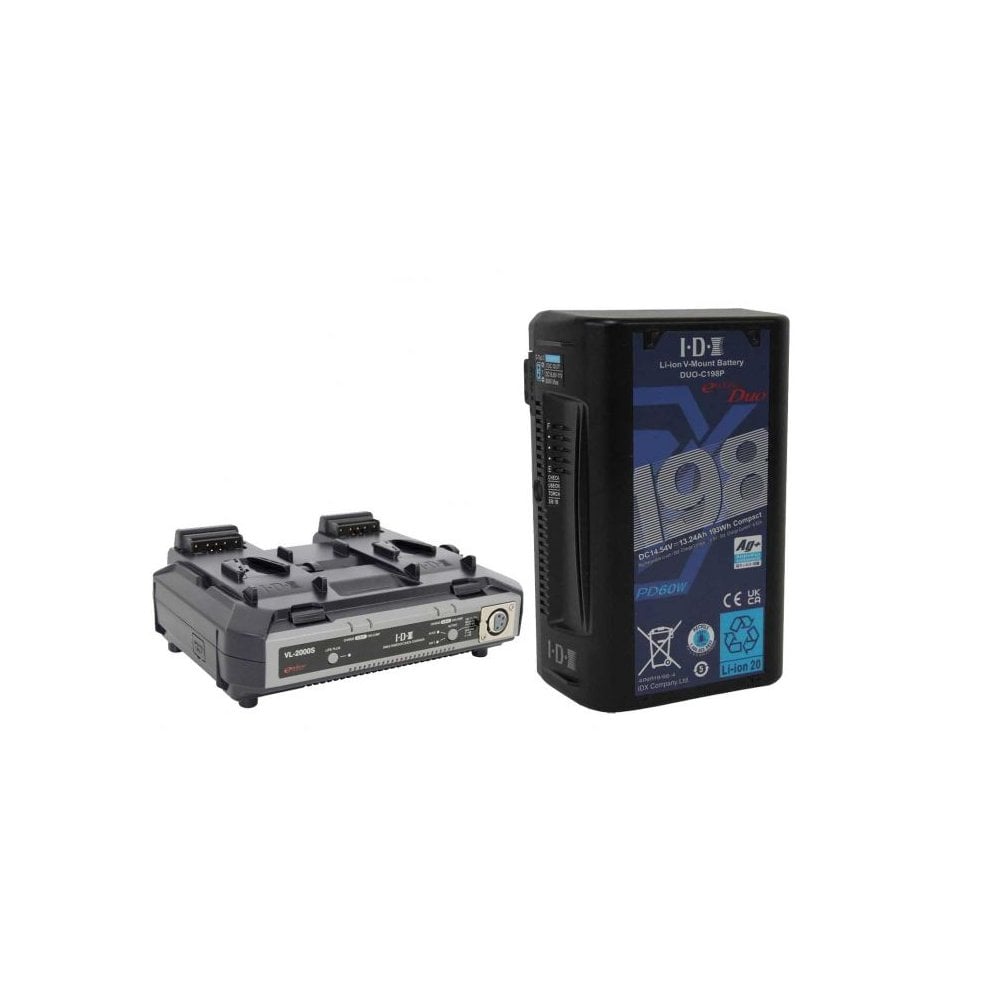

IDX ED-CP198/2000S Battery/Charger Kit

IDX ED-CP198/2000S Battery/Charger Kit(ED-CP198/2000S, EDCP198/2000S, ED CP198/2000S)

DUO-C198P Battery

IDX introduces the next generation in the popular DUO-C Series, the DUO-CP Series. This advanced version offers power taps like those found in the DUO Series for powering accessories. Newly added non-proprietary USB-C PD port for two-way power delivery and charging when used with the new UC-PD1 compact charger, and of course via D-Tap advanced with the VL-DT1. The UC-PD1 can be used with other portable devices. An anti viral and anti microbial body for hygienic peace of mind.

The DUO-C198P is the successor of the popular DUO-C198 battery. Ideal compact battery solution for digital cinema cameras and camera stabilizer systems where long runtimes are required. With its ultra-robust 193Wh capacity and compact 2.4lb design, the DUO-C198P can provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Weapon effortlessly for extended periods at a time. The DUO-C198P also includes two built-in D-Taps and now features a USB-C port to power accessories as well as charge the battery. Also, V-Torch LED for use in dark environments and SMBus to display battery info via viewfinder on cameras such as ARRI and RED.

VL-2000S Simultaneous Charger

The VL-2000S is a fully simultaneous 2-channel Li-ion V-Mount battery charger with a 100W DC output (4-pin XLR). Supporting LIFE PLUS mode, the latest advances in charging technology, the VL-2000S can extend battery life up to 20%.

The VL-2000S features Power Base mode – the ability to utilise the mounted batteries for powering equipment via the 4pin XLR output. Low voltage batteries are safely charged with the ‘Recovery Charge’ mode. The charger also houses energy efficient circuitry that will automatically power down the charger when inactive.

DUO-C198P Battery

Capacity: 193Wh (14.54V/ 13.24Ah)

Max Output Voltage: 16.8V DC

Nominal Voltage: 14.54V DC

Max Discharge Current: 14A‡

D-Tap: 80W each

USB: DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A, Max 60W

End Voltage: 11V

Battery Protection: Over-charge, Over-discharge, Over-current, Thermal protection

Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)

To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)

To store: -4°F ~ 122°F (less than 1 month)

Dimensions: 3.82(W) x 5.75(H) x 2.32(D) inches

Weight: 2.40 lbs approx.

‡ may vary depending on the operating temperature

VL-2000S Simultaneous Charger

Input Voltage AC 100-240V 50/60Hz

Quick Charge Current Li-ion

4A (1 battery)

3A (2 batteries)

Quick Charge System Li-ion: Constant Current / Constant Voltage

Ni-CD: Constant Current

Ni-MH: Constant Current

DC Output 100W max.

Operating Temperature -5°C ~ 40°C

Dimensions 231(W) x 82(H) x 182(D) mm

Weight 1240g

In the box

2 x DUO-C198P Battery

1 x VL-2000S Simultaneous Charger
