IDX P-VMICRO V-Mount Adaptor Plate

code: P-Vmicro

Status | Usually dispatched within 24 hours

Designed specifically for the form factor of the micro batteries IDX Imicro batteries.

2x 80W D-Tap Outputs (unregulated)

1x USB-C Output (DC 5V/2.3A)

Able to be mounted onto the IDX A-CPmicro cheese plate.

IDX P-VMICRO V-Mount Adaptor Plate(P-Vmicro , PVmicro , P Vmicro)

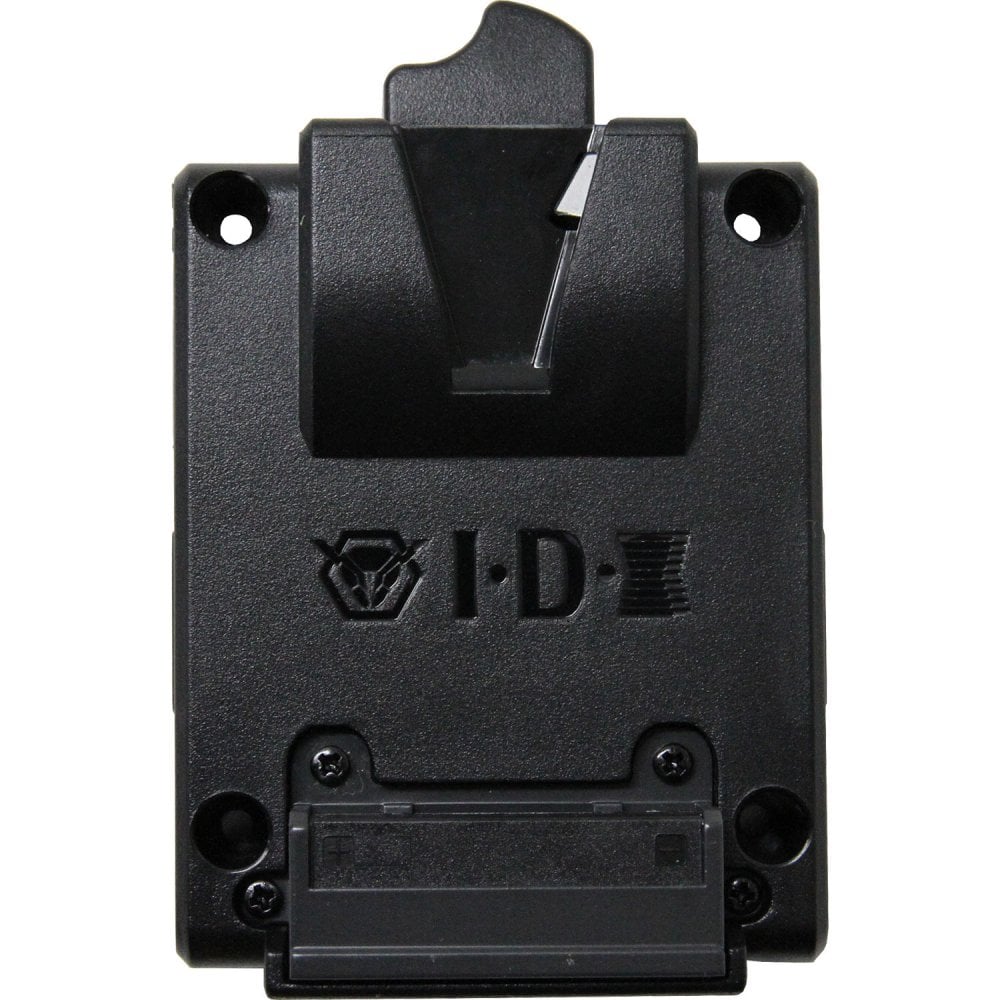

The P-Vmicro is a V-Mount adapter plate sized to fit Imicro batteries. Equipped with 2x D-Taps and USB-C output.

Output Connectors (2) D-Tap, (1) USB-C

D-Tap Output Voltage Battery through voltage

Maximum D-Tap Output 80W

USB-C DC 5V / 2.3A max

Battery Connector Max Current 14A

Ambient Temperature -20C~45C (discharge)

Dimensions 66(W) x 96(H) x 28(D) mm

Weight 110g approx

In the Box

1 x IDX P-VMICRO V-Mount Adaptor Plate

4 x M3 x 10 Double SEMS Screws
