IDX V-Mount Battery Kit with 4x DUO-C98 96Wh Battery & VL-4X Charger

IDX V-Mount Battery Kit with 4x DUO-C98 96Wh Battery & VL-4X Charger(ED-CP98/4X, ED CP98/4X, EDCP98/4X)

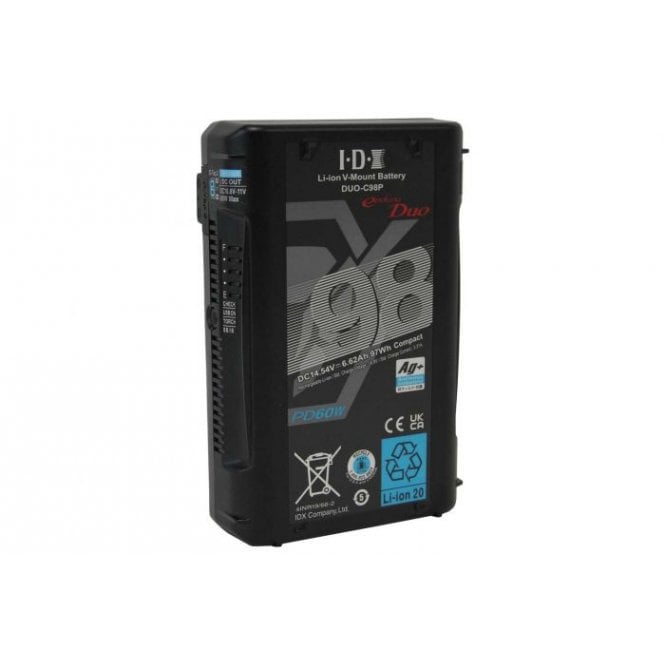

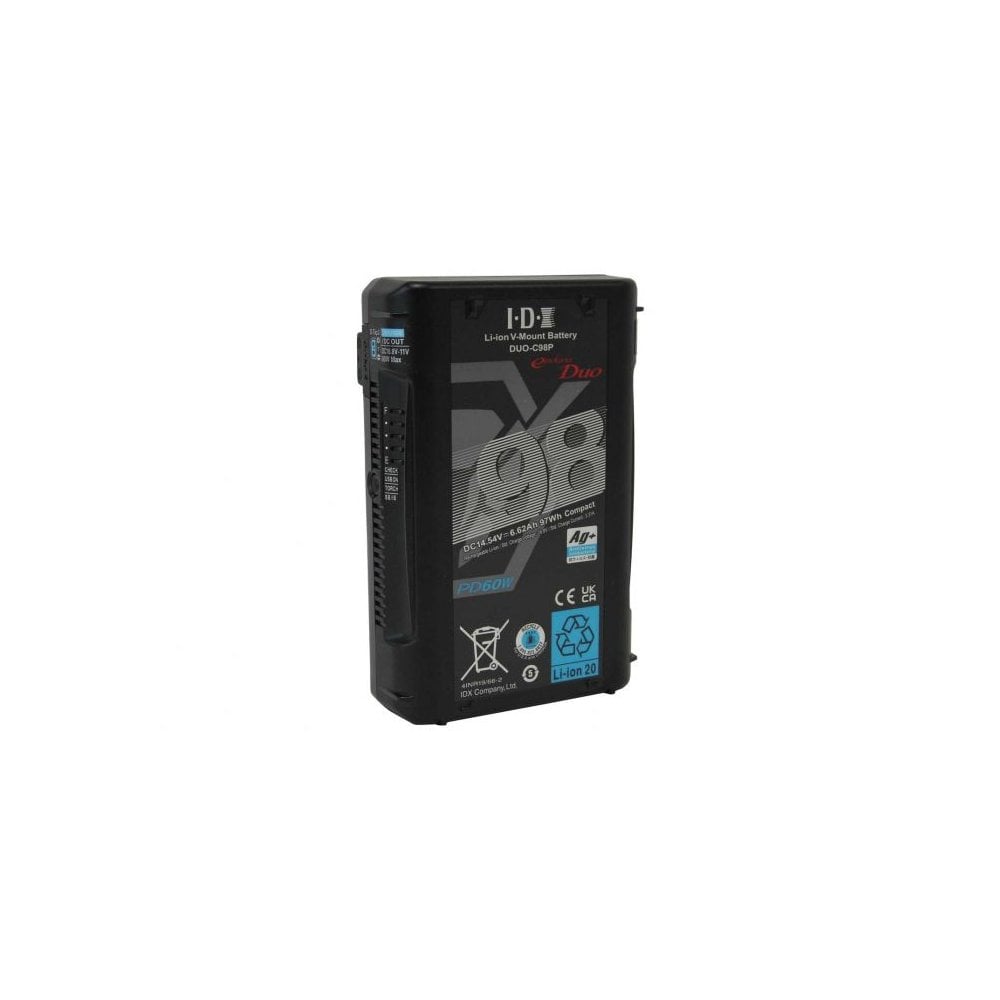

IDX DUO-C98 96Wh High-Load Battery

The IDX DUO-C98 96Wh High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port features a V-mount and is only 2.3" thick, but packs 96Wh of capacity to power your professional devices. It is well suited for handheld gimbal and aerial applications, as well as run-and-gun productions where size and weight can become an issue. Battery data information displays in most camera's viewfinders.

The DUO-C98 can handle a combined load of up to 10A among its V-mount, D-Tap outputs, and USB port. One of the D-Taps can also be used to charge the battery, although that requires an optional charger that is not included. Designed with battery circuit protection against overcharge, over-discharge, over-current, and exposure to high temperatures, providing protection to your battery from the rigors of production. A 5-LED battery life indicator on the side of the battery provides a quick visual indication of charge state of your battery.

IDX VL-4X Charger

The VL-4X is a slim, lightweight, affordable 4-channel charger. Dual Simultaneous/Sequential feature charges up to 4 batteries total with any 2 simultaneously. The included AC adapter doubles as a 90W DC power supply.

IDX DUO-C98 96Wh High-Load Battery

Mount / Series Type V-Mount

Chemistry Lithium-Ion

Capacity (Wh) 96 Wh

Amp-Hours 6.6 Ah

Output Voltage 14.4 VDC

Maximum Load 10 A

Accessory Port 2 x D-Tap

1 x USB

Maximum Load (Accessory Port) 50 W, 5.4 A ( D-Tap )

USB Output 5 V, 2.3 A

Storage Temperature -4 to 122°F / -20 to 50°C

Charging Temperature 32 to 104°F / 0 to 40°C

Discharging Temperature -4 to 122°F / -20 to 50°C

IP Rating None

Dimensions (W x H x D) 3.8 x 5.7 x 1.5" / 9.7 x 14.5 x 3.8 cm

Weight 1.37 lb / 0.62 kg

IDX VL-4X Charger

Input Voltage AC 100-240V 50/60Hz

Power Consumption 220VA max.

Quick Charge Current 2.7A max.

DC Output 90W (via included AC adapter)

Operating Temperature -5°C ~ 40°C

Dimensions 90.5(W) x 177(H) x 250(D) mm

Weight (charger body) 1100 grams approx.

Weight (AC adapter) 450 grams approx.

In the Box

4x IDX DUO-C98 V-Mount Battery High-Load Battery with D-Tap Advanced, Standard D-Tap & USB Port

1x IDX VL-4X Charger

AC Power Cord
