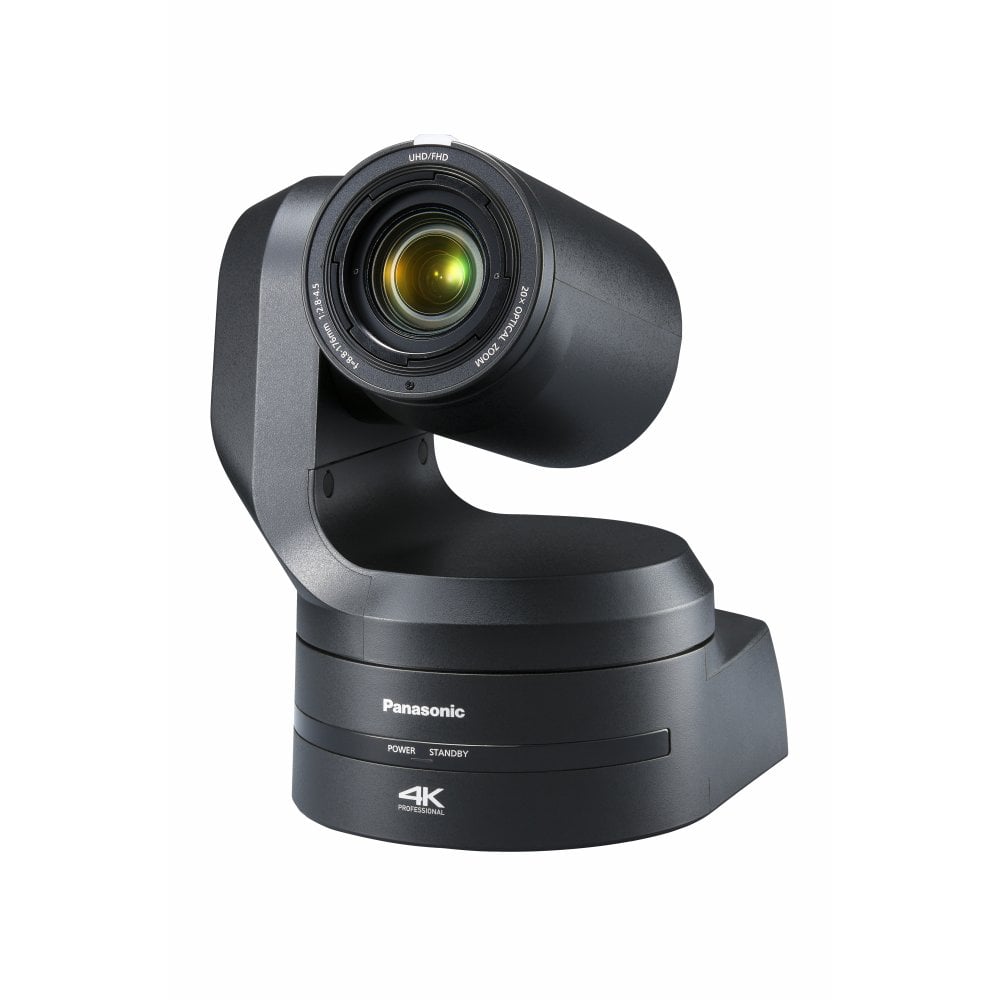

Panasonic AW-UE150AKEJ 4K Integrated PTZ Camera - Black

The AW-UE150A 4K PTZ camera has been designed to meet the needs of professional broadcasters and content creators, delivering advanced video quality, operability and efficiency in studio-based video productions.

The UE150A supports the NDI® High Bandwidth* protocol, enabling seamless IP-based, low-latency 4K video transmission. This is in addition to existing support for SRT and NDI® HX2 protocols, ensuring steady performance in unstable network conditions.

It is also compatible with 12G-SDI, 2x 3G-SDI, HDMI, and fibre output formats. This enables the UE150AW/AK to be easily integrated into a variety of on-site production systems, making it the perfect choice for both remote production and live streaming environments.

Exceptional performance and high-quality video

Equipped with a high-sensitivity 1.0-type 4K MOS sensor, Panasonic’s UE150AW/AK delivers high quality video. Its wide-angle lens (75.1° horizontal), 20x optical zoom, and built-in auto-tracking functionality make it the ideal choice for a versatile range of installations.

The UE150AW/AK features an optical low-pass filter (OLPF) that reduces luminance and colour moiré when filming monitors or LED walls, whilst HDR (HLG) compatibility delivers true-to-life image reproduction.

Its enhanced Optical Image Stabilizer (OIS) minimises image shake during pan and tilt operations, and upgraded synchronisation of pan, tilt and zoom presets for a smoother camera operation.

Increased compatibility for any environment

The UE150AW/AK is compatible with Panasonic’s AK-HRP1010GJ/HRP1015GJ Remote Operation Panel for seamless colour matching with studio cameras, increasing overall versatility and functionality within broadcasting setups.

Camera Unit Specifications

Power Input:

• DC 12V (Range: 10.8V to 24.0V)
• 4.0A (XLR IN connector)
• 1.2A (PoE++ power supply)
• IEEE802.3bt Standard: DC 42V to 57V (with Software Authentication - LLDP supported)

Dimensions:

• 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
• Weight: Approx. 4.3 kg (9.48 lbs) excluding mount bracket

Image Sensor:

• 1-type 4K MOS ×1
• Effective Pixels: Approx. 20,180,000 pixels

Lens:

• Motorized 20x Optical Zoom (F2.8 to F4.5)
• Zoom Range: f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches)
• 35mm Equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)
• Optical Zoom: 20x, i.Zoom: UHD 24x, FHD 32x

Angle of View:

• Horizontal: 75.1° (wide) to 4.0° (tele)
• Vertical: 46.7° (wide) to 2.3° (tele)
• Diagonal: 82.8° (wide) to 4.6° (tele)

Horizontal Resolution:

• 2,000 TV Lines (typical, center area)

Video Output Formats:

• 4K (2160p):
  • 2160/59.94p, 2160/50p, 2160/29.97p (Native)
  • 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native)
• Full HD (1080p):
  • 1080/59.94p, 1080/50p, 1080/29.97p (Native)
  • 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native)
  • 1080/59.94i, 1080/50i
• HD (720p):
  • 720/59.94p, 720/50p

Connectors:

• HDMI 2.0: 4:2:2/10bit*8
• 12G SDI OUT, 3G SDI OUT (1/2)
• SFP+ (Standard)
• IP Connector (RJ-45 for IP control)
• Control IN (RS422A, RJ-45)
• MIC/LINE Input: Compatible with SDI/HDMI/IP (AAC, for IP only, 3.5mm stereo mini jack, unbalanced)
• G/L IN (BNC)

Networking:

• LAN
• IP Streaming: JPEG (MJPEG), H.264, H.265, NDI® HX2, NDI® High Bandwidth

Power Consumption:

• PoE++: 1.2A
• 4A (XLR IN connector)
