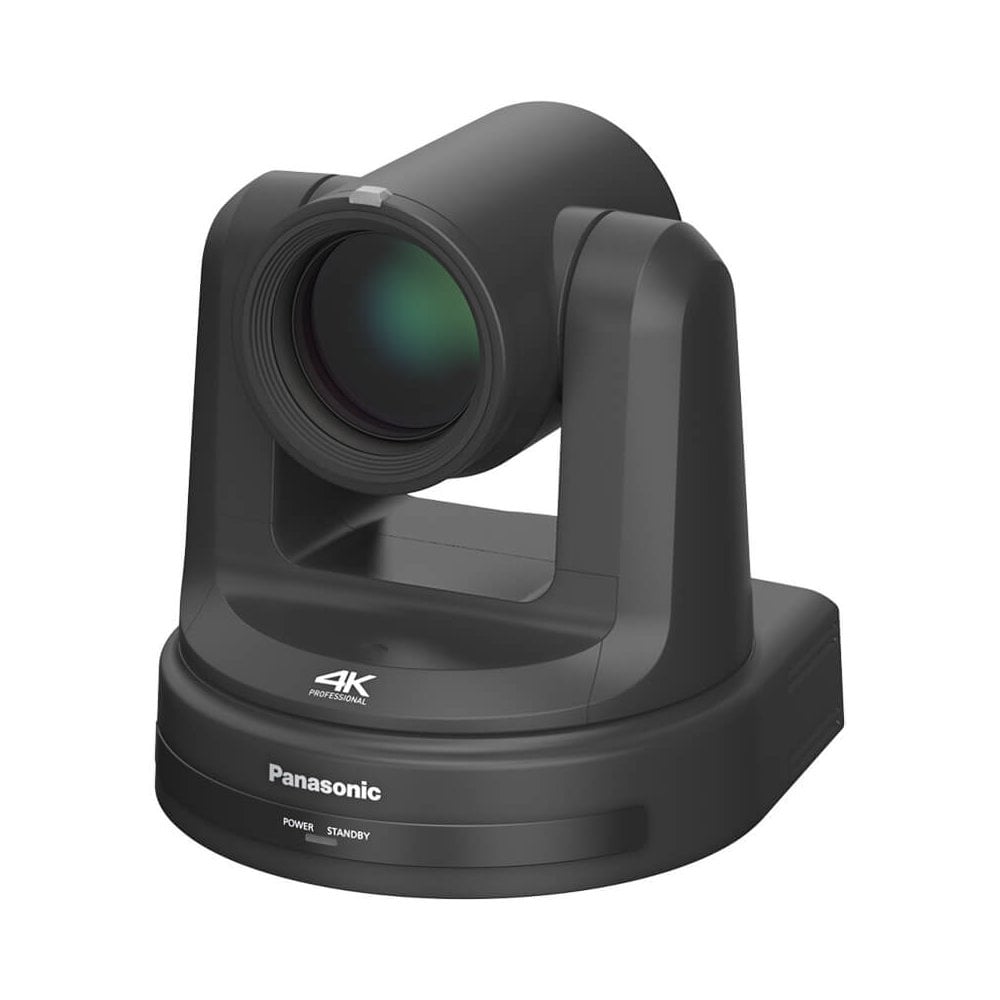

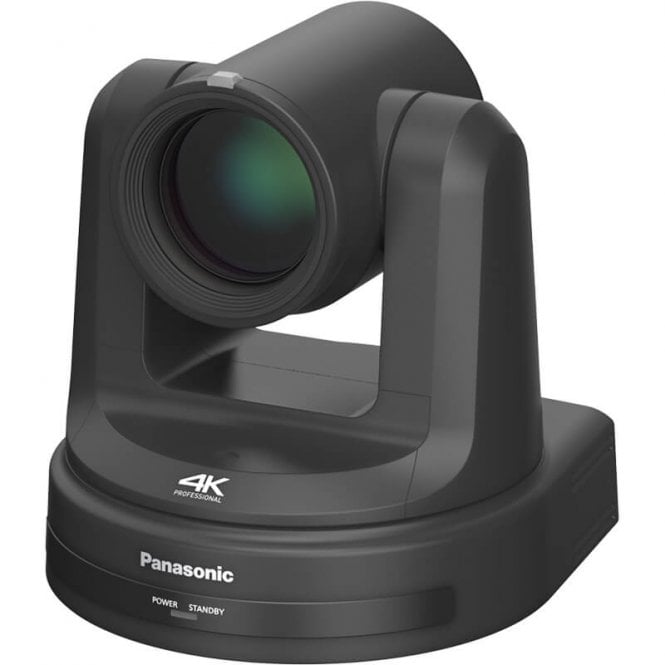

Panasonic AW-UE20KE 4K PTZ Camera with 3G-SDI, HDMI, and USB Output - Black

Panasonic PAN-AW-UE20KE (PAN/AW-UE20KE, PAN/AW/UE20KE, PANAWUE20KE, PAN AW UE20KE) 4K PTZ Camera with 3G-SDI, HDMI, and USB Output - Black

ENTRY MODEL SUITABLE FOR USE IN SMALL MEETING ROOMS AND SMALL CLASSROOMS

PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-UE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-UE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-UE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.

HIGH-QUALITY VIDEO STREAMING FOR MORE COMFORTABLE ONLINE COMMUNICATION

• 4K resolution, wide angle and high-magnification zoom maintain “the ambience of hall” intact in streaming videos
• Auto Tracing Software accurately follows and captures the speaker

EXCELLENT SYSTEM FLEXIBILITY TO ACHIEVE SMART WIRING AND SMOOTH OPERATION

• Easy installation/setup and compact system configuration
• Single PC or controller can manage and control multiple cameras
• Use as a USB camera
• Direct upload of videos to video live streaming services

COMPACT SIZE AND EXCELLENT FUNCTIONALITY THAT DO NOT DISTURB THE EXISTING VIDEO STREAMING ENVIRONMENT

• Compact design blends in with the surroundings. Lightweight and small size for added installation flexibility
• Linkable with existing system

General

• Power Requirements: DC12 V ± 10 % (10.8 V to 13.2 V) (Supplied AC adapter)
• PoE+: IEEE802.3 at compliant
• Ambient Operating Temperature: 0 °C to 40 °C (32℉ to 104℉)
• Ambient Operating Humidity: 20 ％ to 90 ％ (no condensation)
• Storage Temperature: -20°C to 50°C (-4 °F to 122 °F)
• Controller Supported: AW-RP150GJ, AW-RP60GJ, AW-RM50AG

Camera Unit

• Image Sensor: 1/2.8-type MOS×1
• Lens: Electric 12 x optical zoom F1.6～F2.8 (f = 3.9 mm ～ 46.8 mm)
• Zoom: Optical zoom: 12 x
• Angle of View Range: Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)

Output Format

• Output Format HDMI/4K: 2160/30p, 2160/29.97p, 2160/25p
• Output Format HDMI/HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i, 1080/30p,1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p
• Output Format SDI/HD: 1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080/50i,1080/30p, 1080/29.97p, 1080/25p, 720/60p, 720/59.94p, 720/50p

Output

• Video Output: HDMI, 3G-SDI OUT

Input/Output

• Input: DC 12 V IN
• Input/Output Connector: LAN, RS-422, AUDIO IN, USB, RS-232C IN, RS-232C OUT

Pan Tilt Head Unit

• Installation Method: Stand-alone (Desktop) or suspended (Hanging)*2
• Panning Range: ±170°
• Tilting Range: -30°～90°
• Quietness: NC40 or less
• Windows: Windows 10 Windows® Internet Explorer® 11（32 bit / 64 bit） Microsoft Edge Google Chrome
• Mac: Mac OS 10.15 Mac OS 10.14 Mac OS 10.13 Mac OS 10.12 Safari Google Chrome

IP Streaming

• Image Streaming Mode: JPEG(MJPEG), H.264, H.265
• Image Resolution: 3840×2160, 1920×1080, 1280×720, 640×360

In The Box

• Panasonic 4K PTZ Camera with 3G-SDI, HDMI, and USB Output - Black
