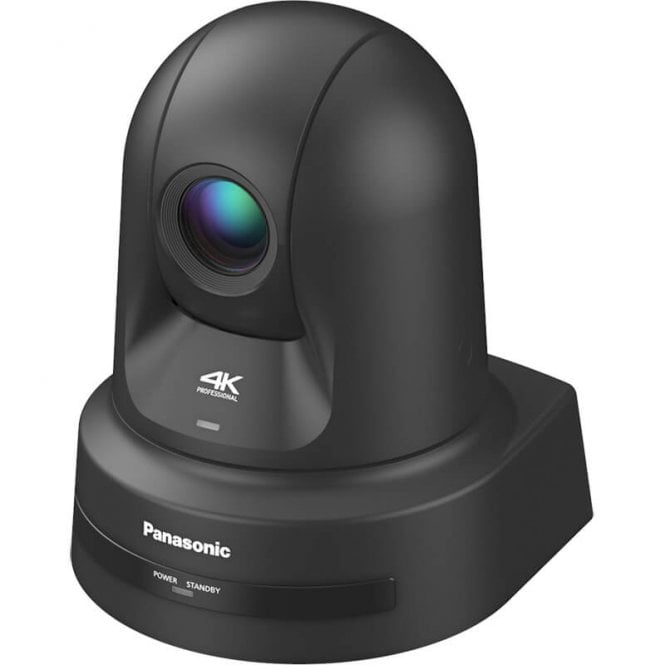

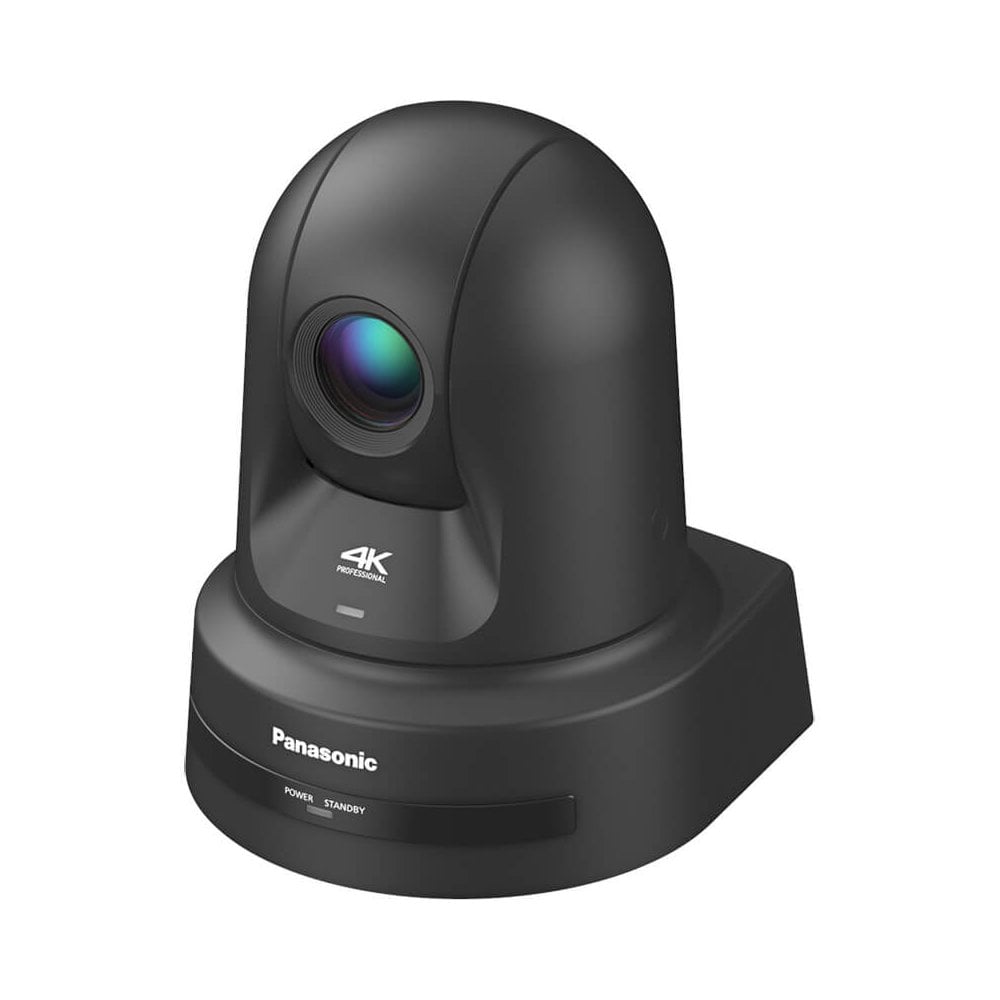

Panasonic PAN-AW-UE80KEJ 4K PTZ Camera - Black

Panasonic PAN-AW-UE80KEJ (PAN/AW-UE80KEJ, PAN/AW/UE80KEJ, PANAWUE80KEJ, PAN AW UE80KEJ) 4K PTZ Camera - Black

MODELS TO RESPOND TO A WIDE RANGE OF VIDEO PRODUCTION NEEDS, SUCH AS RECORDING OF REALITY SHOWS AND EVENTS

The AW-UE80W/K is PTZ camera suitable for capturing the natural facial expressions of actors/performers and for recording events without spoiling the ambience.

The dome-shape design minimizes “the feeling of being recorded on video” while the new direct-drive motor produces a very quiet operating sound so it won’t disturb the production activities or spoil the ambience. The camera offers high-image-quality 4K/60p resolution, wide 74.1° angle and optical zoom with up to 24x magnification to achieve superb video image quality. The AW-UE80W/K also offers excellent stability and security during video streaming so it can be used for any type of video production. From production of a reality show to recording of an internal business or educational event, the top-of-the-line standard model, AW-UE80W/K, can be used in a diversity of applications.

COMPACT & QUIET DESIGN BLENDS IN SMOOTHLY WITH THE SURROUNDINGS

Featuring compact design and quiet operating sound, the AW-UE80 can be used effectively in any shooting situations and places. The camera unit is so inconspicuous it helps capture more natural facial expressions and actions of the performers.

QUIET OPERATING SOUND FOR ANYWHERE USE.

The operating sound is quiet so there is no need to worry about the camera sound spoiling the ambience even when producing a reality show or recording an event. The new direct-drive motor operates quietly during panning (horizontal movement) and tilting (vertical movement) so it does not disturb the recording of crucial scenes. What’s more, the new direct-drive motor stops precisely at a desired position, returns exactly to a preset position when the preset function is used for accurate camerawork, moves smoothly to accurately follow subjects moving at different speeds and allows speed setting. Combined with the quietness of operations, these features and functions can play an active part in a diversity of video production.

ORIGINAL IMAGE STABILIZERS FOR STABLE VIDEO SHOOTING

Even when the camera unit is mounted on an unstable place such as a crane or rail, the two types of image stabilizer functions ensure sharp and clear images. The Electronic Image Stabilization (EIS) makes adjustment by ensuring smooth movement of the camera in the roll direction while the Optical Image Stabilization (OIS) makes fine adjustment of the lens. Together, they assure stable recording of high-quality images.

Can be suspended from the ceiling or mounted on a tripod for shooting from locations too difficult for a person to enter.

The AW-UE80 can be flexibly mounted at a place where it is too difficult for a person to enter, so it can be utilized in a diversity of recording situations.

FLEXIBLY ADAPT TO VARIOUS VIDEO SHOOTING SITUATIONS SUCH AS LARGE-SCALE SHOOTING

The wealth of functions to meet diverse shooting needs, such as reduction of required manpower at the shooting site without causing any quality degradation.

4K RESOLUTION, WIDE ANGLE AND HIGH-MAGNIFICATION ZOOM MAINTAIN “THE AMBIENCE OF HALL” INTACT IN STREAMING VIDEOS

The combination of the high 4K resolution, wide angle and high-magnification zoom enables capturing of the ambiences of events and concerts as well as the facial expressions of actors/performers so that the realism and atmosphere can be conveyed in online video streaming videos. The zoom function allows the enlargement of a desired area precisely so the streaming video becomes more attractive to watch. By utilizing the wide 74.1° angle and up to 24x optical zoom, missing of important scenes at an event can be prevented with a minimal number of camera units. This makes the AW-UE80 suitable for use in a broad range of applications regardless of the size of the hall.

Single controller can control up to 200 camera units

A single controller unit can be used to control multiple camera units. When equipment compatible with PoE++ is used to connect to the network, a single LAN cable can transmit the video, audio and control signals as well as the power supply. The reduced number of cables used means decreased cable connection trouble, such as cable disconnection that causes interruption of recording. It also eliminates the need for the wiring of power supply cables. Furthermore, in outdoor recording using a temporary platform, the time and effort for setting up and removing the platform can be reduced.

Perfect for starting AR/VR video shooting at a low cost

The AW-UE80 can output commands in compliance with FreeD so it can be connected to an AR/VR system. The use of the AR/VR feature enables the creation of a new type of videos totally different from before.

HIGH-IMAGE-QUALITY VIDEOS RESISTANT TO INTERRUPTION AND WITH A LOW LATENCY

The AW-UE80 realizes streaming of high-image-quality videos with a low latency even when the communication is unstable. Furthermore, it ensures excellent stability and security during streaming, so it can be used safely for any applications.

SMOOTH PLAYBACK OF HIGH-IMAGE-QUALITY VIDEOS

The AW-UE80 comes standard with High Bandwidth NDI® and NDI®|HX version for IP transmission of high-image-quality videos. High Bandwidth NDI® enables IP transmission of high-image-quality videos with a low latency, while NDI®|HX version 2 achieves efficient video transmission with a limited bandwidth. Since the video source is accessible from any device on the same network, even unknown IP addresses are automatically recognized. This allows for a flexible video production flow at the shooting site.

Comprehensive

• Power Requirements: 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter)
• PoE++: IEEE802.3bt compliant: DC42 to 57 V (Software authentication (LLDP) is supported)
• Current Consumption: 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply)
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Allowable Humidity Ranges: 20 ％ to 90 ％ (no condensation)
• Storage Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
• Mass: Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket), Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket)
• Dimensions (W x H x D): 170.0 mm x 211.0 mm x 171.0 mm (6.693 inches x 8.307 inches x 6.732inche

Camera part

• Image Sensors: 1/2.5-type 4K MOS x 1
• Effective pixels: Approx. 8,490,000 pixel
• Lens: Motorized Optical 24x zoom, F1.8 to F4.0, [f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches); 35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)]s)
• Zoom: Optical zoom: 24x, i.Zoom UHD 28x, FHD 36x, Digital extender zoom: 1.4x, 2x
• Conversion Lens: Not supported
• Angle of View Range: Horizontal angle of view: 74.1° (wide) to 3.3° (tele), Vertical angle of view: 46.0° (wide) to 1.9° (tele), Diagonal angle of view: 81.8° (wide) to 3.8° (tele)
• Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as "night mode")
• Focus: Switching between auto and manual
• Focus Distance: Entire zooming range: 1200 mm (3.9 ft), Wide end: 100 mm (0.33 ft)
• Color Separation Optical System: 1MOS
• Minimum Illumination: 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation)
• Horizontal Resolution: 1,500 TV Typ (Center area, UHD mode, wide), 1,000 TV Typ (Center area, FHD mode, wide)
• Gain Selection: Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB)
• Frame Mix: Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
• Gamma: HD / Normal / Cinema1 / Cinema2 / Still Like
• White Balance: ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.), AWB: AWB-A / AWB-B, VAR (selectable between 2000 K and 15000 K by designating a value)
• Chroma Amount Variability: OFF, -99 ％ to 99 %
• Output Format: SDI/HD: 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p, HDMI/4K (Native) 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p, HD: 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p

Input

• Input Connector: DC 12 V IN, G/L IN(BNC) BBS (Black Burst Sync), tri-level sync supported)

Output

• Video Output: HDMI: HDMI 2.0 connector 4:2:2/10bit (HDCP is not supported, Viera Link is not supported), 3G-SDI OUT: SMPTE292M/424M/ 75 Ω(BNC×1) (Level-A/Level-B supported)

Input/output

• Input/Output Connector: LAN: LAN terminal for IP control (RJ-45), RS-422: CONTROL IN RS422A (RJ-45), MIC/LINE input: AAC compatibility (compatible with IP only), Φ3.5 mm stereo mini jack
• During MIC input: Input level: -40 dBV (0 dB=1 V/Pa, 1 kHz), Supply voltage: 2.5 V±0.5 V(plug-in power compatible), During LINE input: Input level: -10 dBV

Rotating platform part

• Pan operating range: ±175°
• Tilt operating range: -30°～90°

 IP Streaming

• Image Streaming Mode: JPEG(MJPEG), H.264, H.265, NDI®/HX version 2*2,3,4 (H.264), High Bandwidth NDI®
• Image resolution: 1920×1080, 1280×720, 640×360, 320×180
• Image Transmission Setting: H.264: Transmission Type: Unicast port(AUTO), Unicast port(MANUAL), Multicast port Frame rate: [At 60 Hz] 5 fps/15 fps/30 fps/60 fps [At 50 Hz] 5 fps/12.5 fps/25 fps/50 fps, H.265: Transmission Type: Unicast port(AUTO), Unicast port (MANUAL), Multicast port Frame rate: [At 60 Hz] 60 fps/30 fps [At 50 Hz] 50 fps/25 fps H.264 & H.264: Max Bit Rate: 512 kbps/768 kbps/1024 kbps/1536 kbps/2048 kbps/3072 kbps/ 4096 kbps/6144 kbps/8192kbps/10240 kbps/12288 kbps/14336 kbps/16384 kbps/High Bandwidth NDI®: Transmission Type: TCP/UDP, Unicast/Multicast Max Bit Rate: 250 Mbps, NDI®/HX version 2 Transmission Type: TCP/UDP, Unicast/Multicast

In The Box

• Panasonic 4K PTZ camera - Black
