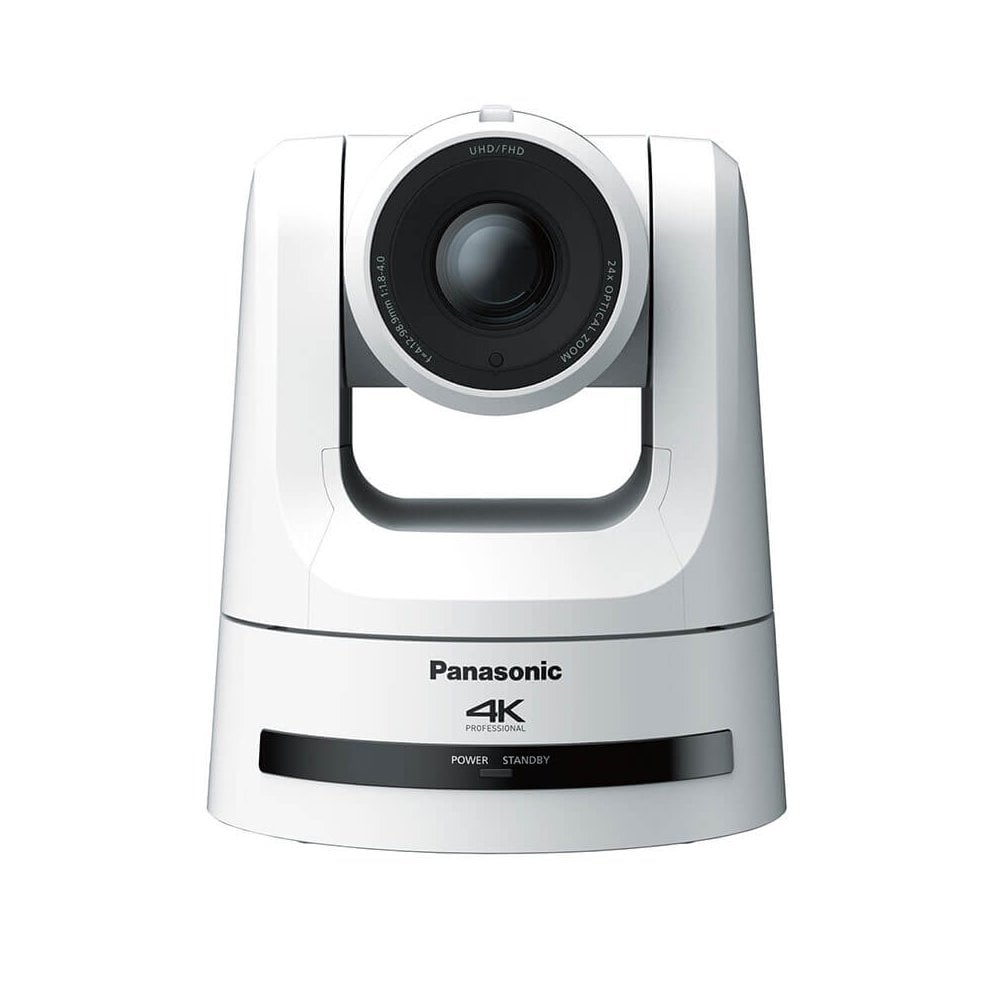

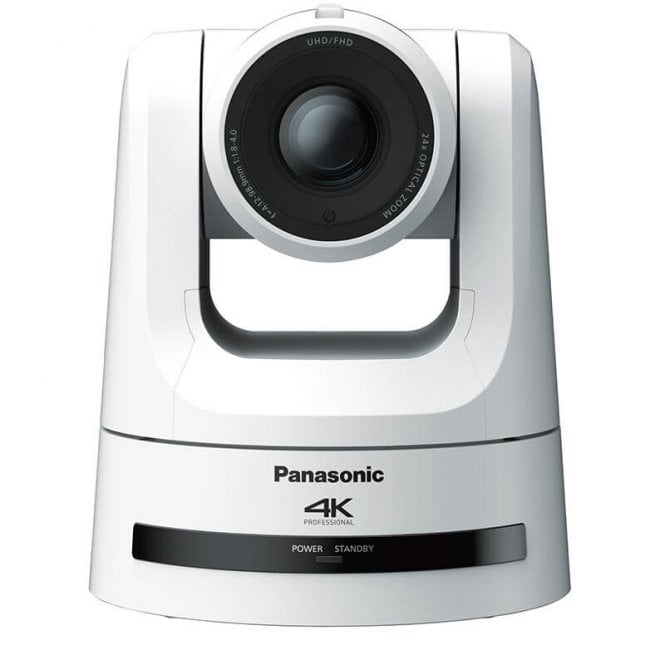

Panasonic PAN-AWUE100WEJ 4K 60p/50p PTZ Camera Supporting NDI and SRT (White)

Panasonic PAN-AWUE100WEJ (PAN/AWUE100WEJ, PAN_AWUE100WEJ, AWUE100WEJ, AW-UE100WEJ, pan-awue100wej) 4K 60p/50p PTZ Camera Supporting NDI and SRT (White)

Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

World's First 4K/60p PTZ Camera supporting NDI and SRT

Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT

High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX (HD) is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.

Supports 4K 60p shooting and 12G-SDI output

Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP. The AW-UE100 PTZ camera offers PoE++ support for camera power, control and video transmission over a single cable. Additionally, a power adapter is included with the camera.

Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom

A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.

Supports FreeD for building AR/VR systems

FreeD command output enables connection with AR/VR (Augmented Reality / Virtual Reality) systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.

Adopts new mechanical pan/tilt for improved responsiveness and quietness

The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilisation (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.

• Dimensions: 169.2mm x 170.6mm x 204.6mm | 6.66 x 6.72 x 8.06 inch
• Image Sensor: 1/2.5-type 4K MOS x 1
• NDI: NDI & NDI | HX
• Output: HDMI, 12G-SDI & 3G-SDI
• Remote Control Interface: LAN & RS-422
• Weight: Approx. 2.2kg / 4.85lbs
• Zoom: 24x optical zoom

In the Box

• Panasonic AW-UE100WEJ 4K 60p/50p PTZ Camera (White)
